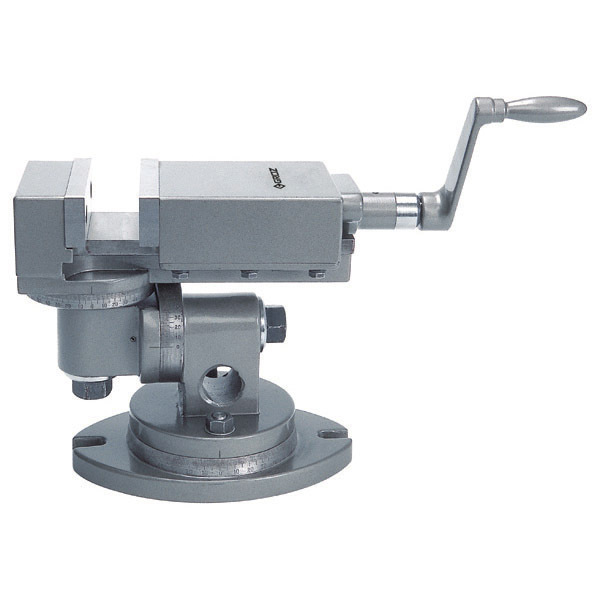

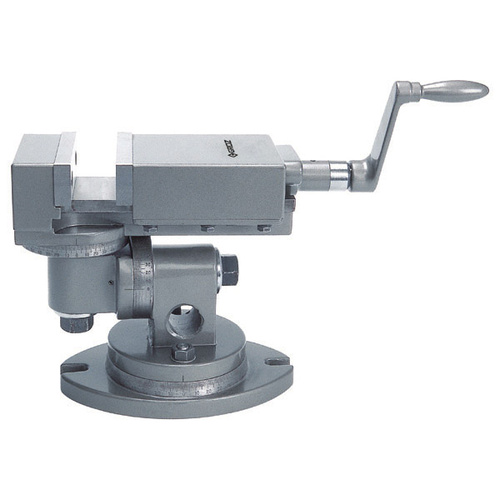

UV/SP/100 Groz 100mm Super Precision Swivel Universal Vice

$1,253.23



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
The most versatile of all machine vices with all degrees of freedom, the Universal Vice allows the work piece to be set at any desired angle.
Low height construction makes these useful on even the most complicated applications.
The vice has one fixed horizontal axis which allows the workpiece to be rotated at any angle. Fully graduated 360° swivel base allows complete rotation along the vertical axis. The third angular slide with a moving axis allows for any setting in the 3D plane.
Manufactured from close grained hi-tensile cast iron with fully hardened and ground tool steel jaws. Premium polychrommatic finish.
Ergonomically designed all steel handle allows for stress free operation. It is assembled on the spindle crank with a spring loaded mechanism providing positive grip.
Use of hi-tensile grade 10.8 fasteners provides strength and rigidity to these vices.
A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts.
''Hold Down'' slots provide secure clamping of the vice on the work table.
Code: UV/SP/100
Jaw Width: 100mm
Jaw Opening: 100mm
Jaw Depth: 32mm
Net Weight: 13.4kg
SKU GZ-35031
Barcode # 8901486350318
Brand Groz
Shipping Weight 13.4000kg
Shipping Width 0.135m
Shipping Height 0.215m
Shipping Length 0.250m
