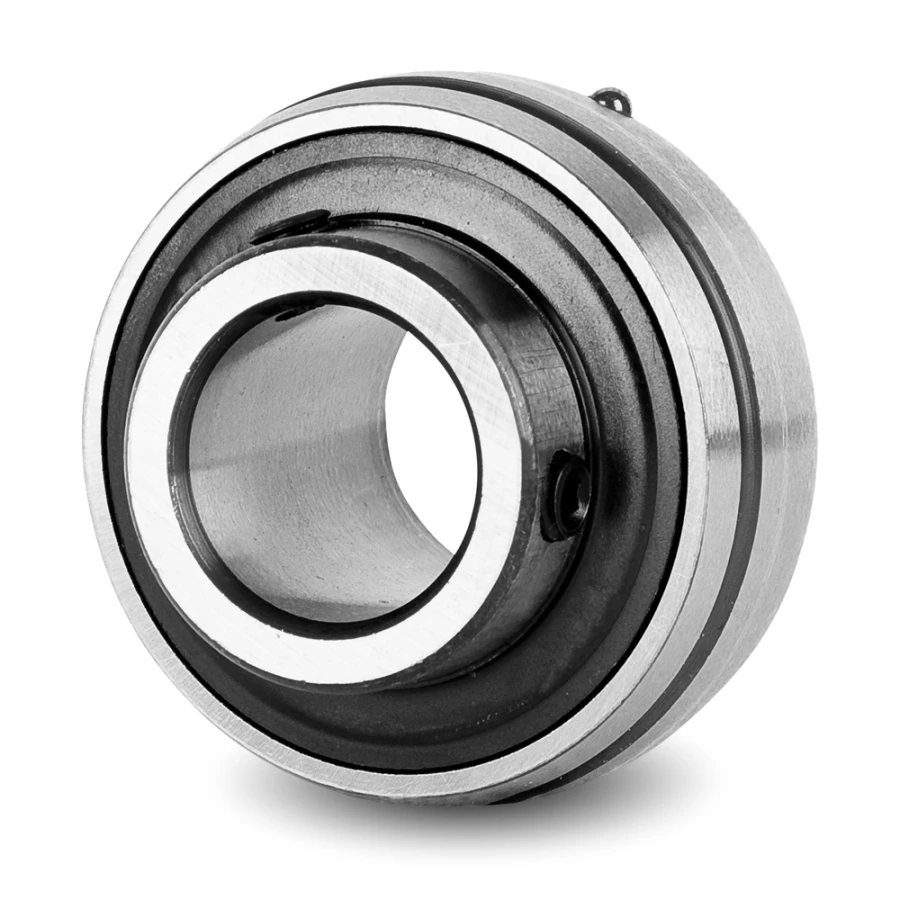

UC204-12 Economy Radial Insert Ball Bearing (3/4 Inch shaft)

$15.05



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
UC-Series Ball Bearings feature wide inner ring ball bearings, set screw locking design, bonded seals with a steel flinger which are matched to precision-machined cast-iron housings. Bearings withstand static misalignment of the shaft of +/- 3 degrees and are designed for normal operation between -20° C and 100° C. Wide inner ring ball bearings deliver greater shaft support and bearings are pre-lubricated and ready for immediate installation.
SKU UC204-12-ECO
Brand NBR
Shipping Weight 0.1600kg
Lifetime Lubricated Yes
Shaft Fastening Grub Screws
Outer Race Spherical
Extended Inner Ring Both Sides
(B) Width Of Inner Ring (mm) 31
(C) Width Of Outer Ring (mm) 17
Norm. DIN 626-1
Min. Operating Temperature (deg. C) ­20°C
Max. Operating Temperature (deg. C) +120°C
Grade Economy
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Seal 2 Piece Seal
(D) Outside Ø (mm) 47
(d) Inside Ø (mm) 19.05 (3/4")
Bore Cylindrical
