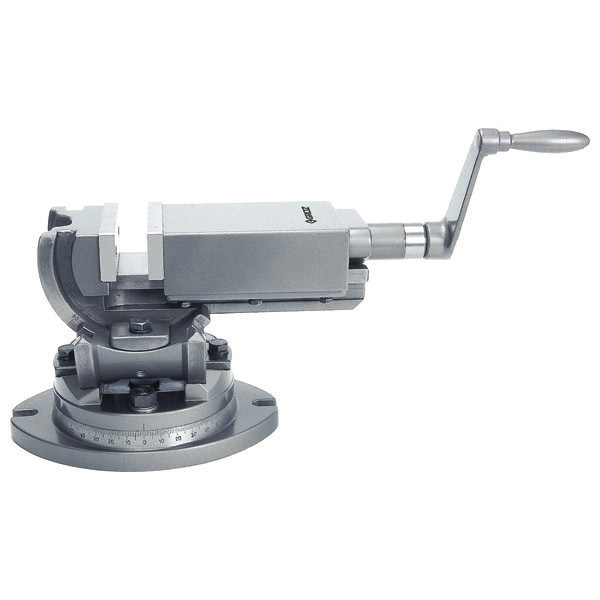

TLT/SP/150 Groz 150mm Super Precision Swivel Tilting Machine Vice

$2,102.10



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Tilting vices providing 3 axis settings of the workpiece in special milling, drilling, grinding, shaping and jig boring applications.Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45° tilting range on either side and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis.
Manufactured from close grained hi-tensile cast iron with fully hardened and ground tool steel jaws. The vices have a premium polychrommatic finish.
Ergonomically designed all steel handle allows for stress free operation. Assembled on the spindle crank with a spring loaded mechanism providing positive grip.
Use of hi-tensile grade 10.8 fasteners provides strength and rigidity to these vices.
Relief in clamp seat ensures complete surface contact as against a line contact between the “Hold Down” clamp and movable slide, thereby providing firm locking at any desired angle.
A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts.
''Hold Down'' slots provide secure clamping of the vice on the work table.
Code: TLT/SP/150
Jaw Width: 150mm
Jaw Opening: 150mm
Jaw Depth: 45mm
Net Weight: 54.0kg
SKU GZ-35027
Barcode # 8901486350271
Brand Groz
Shipping Weight 55.0000kg
Shipping Width 0.285m
Shipping Height 0.270m
Shipping Length 0.465m
