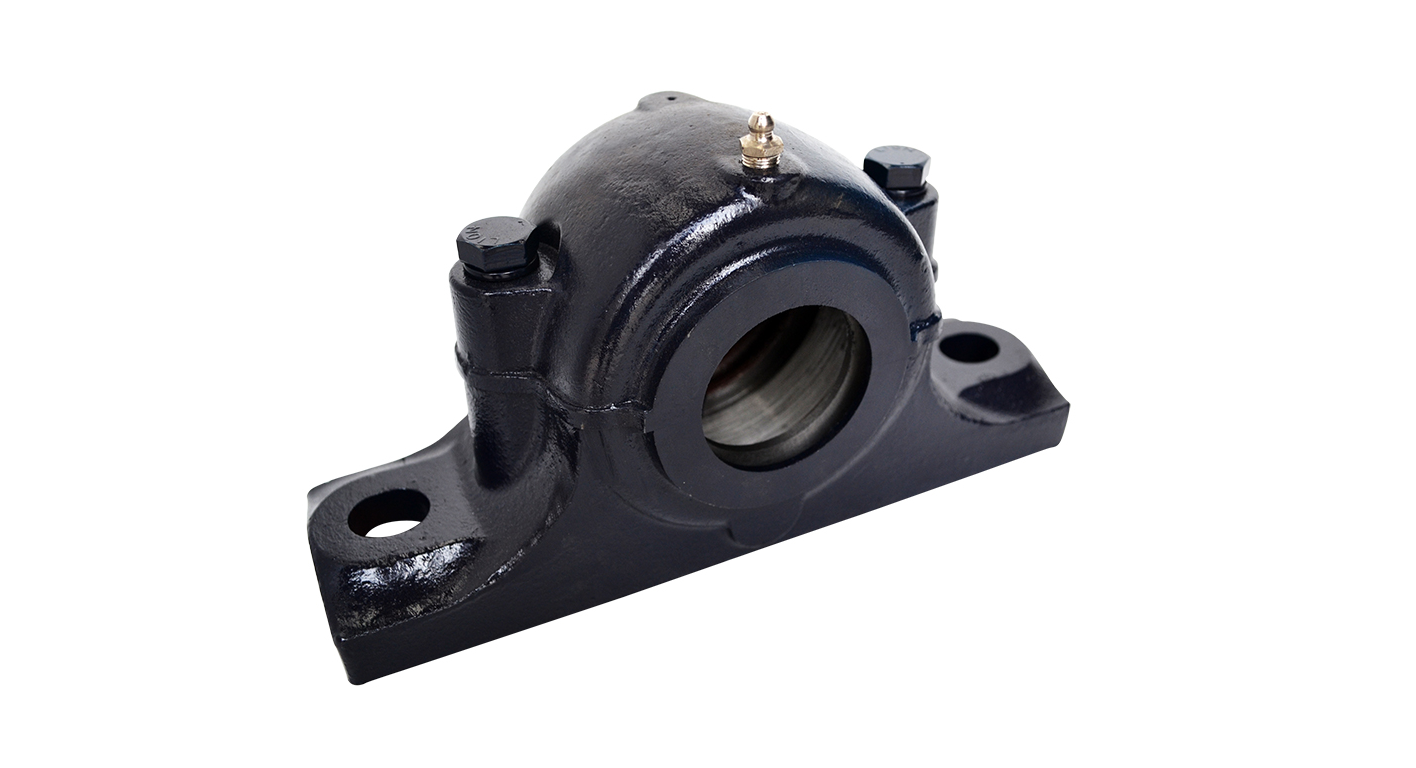

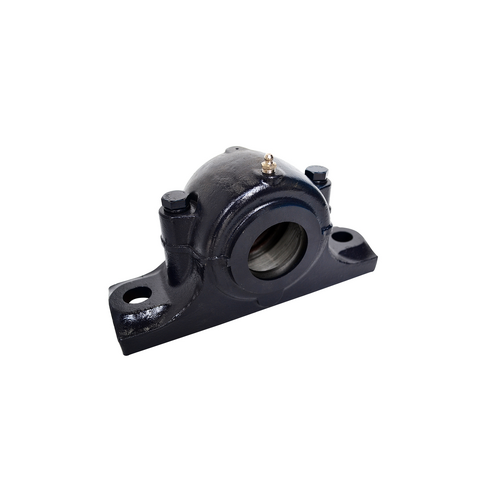

SN508 Plummer Block Bearing Housing incl. Spacer Rings

$65.12



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SN508-ECO
Brand NBR
(B) Width (mm) 60
Seal Felt Seals
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) ­20°C
Housing Type Plummer Block Housing - Medium Duty
Housing Material Cast iron
Number Of Mounting Holes 2
Bolt Size M12
(a) Length (mm) 205
(e) Hole Centres (mm) 170
(h) Height To Centre Of Shaft (mm) 60
(G) Height Of Foot (mm) 25
(w) Overall Height (mm) 110
