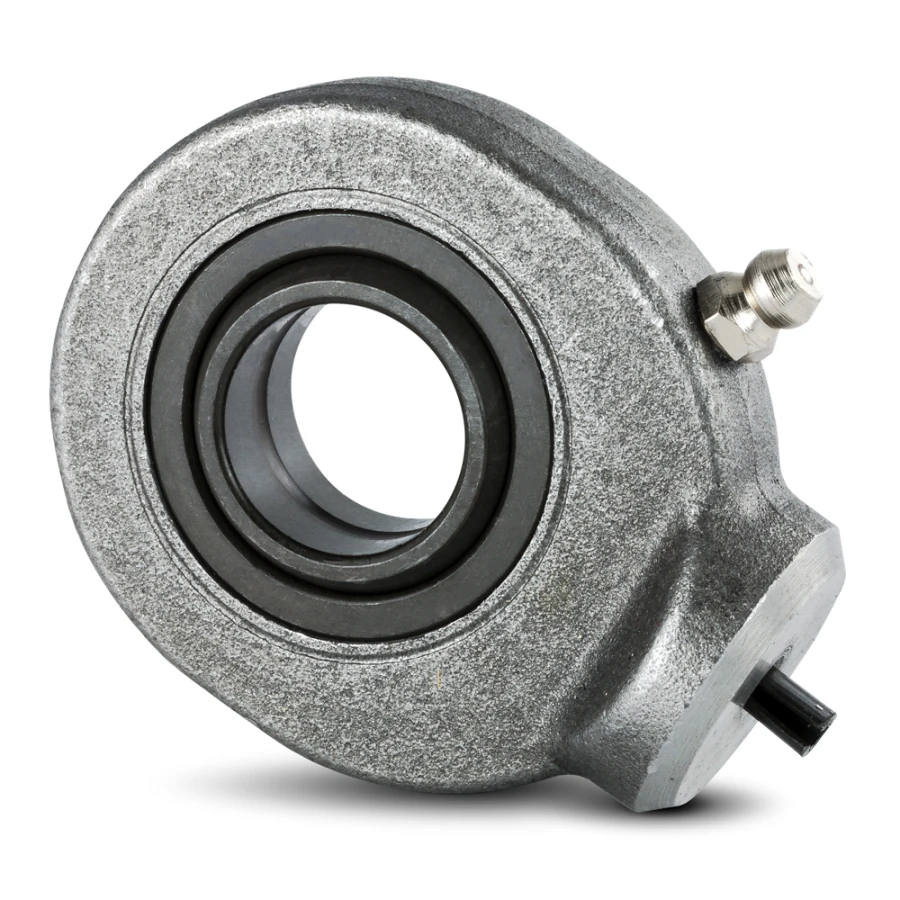

SK45ES Economy Hydraulic Weld-on Rod End w/ Dowel Pin (45mm)

$188.03



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SK45ES-SDTZ
Shipping Weight 1.8000kg
Grade Economy
(d) Inside Ø (mm) 45
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 32
Contact Surface Steel/Steel
(l) Length (mm) 128
(d²) Outside Ø (mm) 102
(c¹) Width (mm) 27
Mounting Welded - Circular
Norm DIN ISO 12240-4
