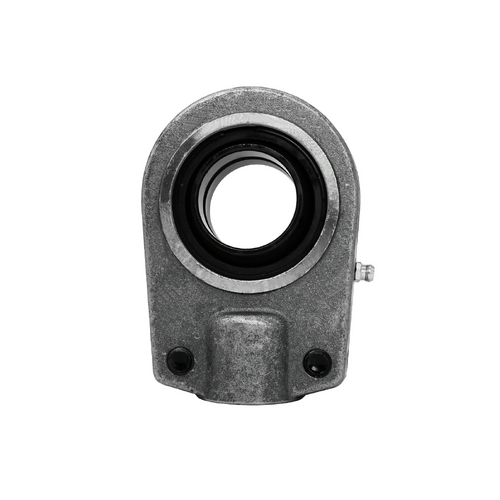

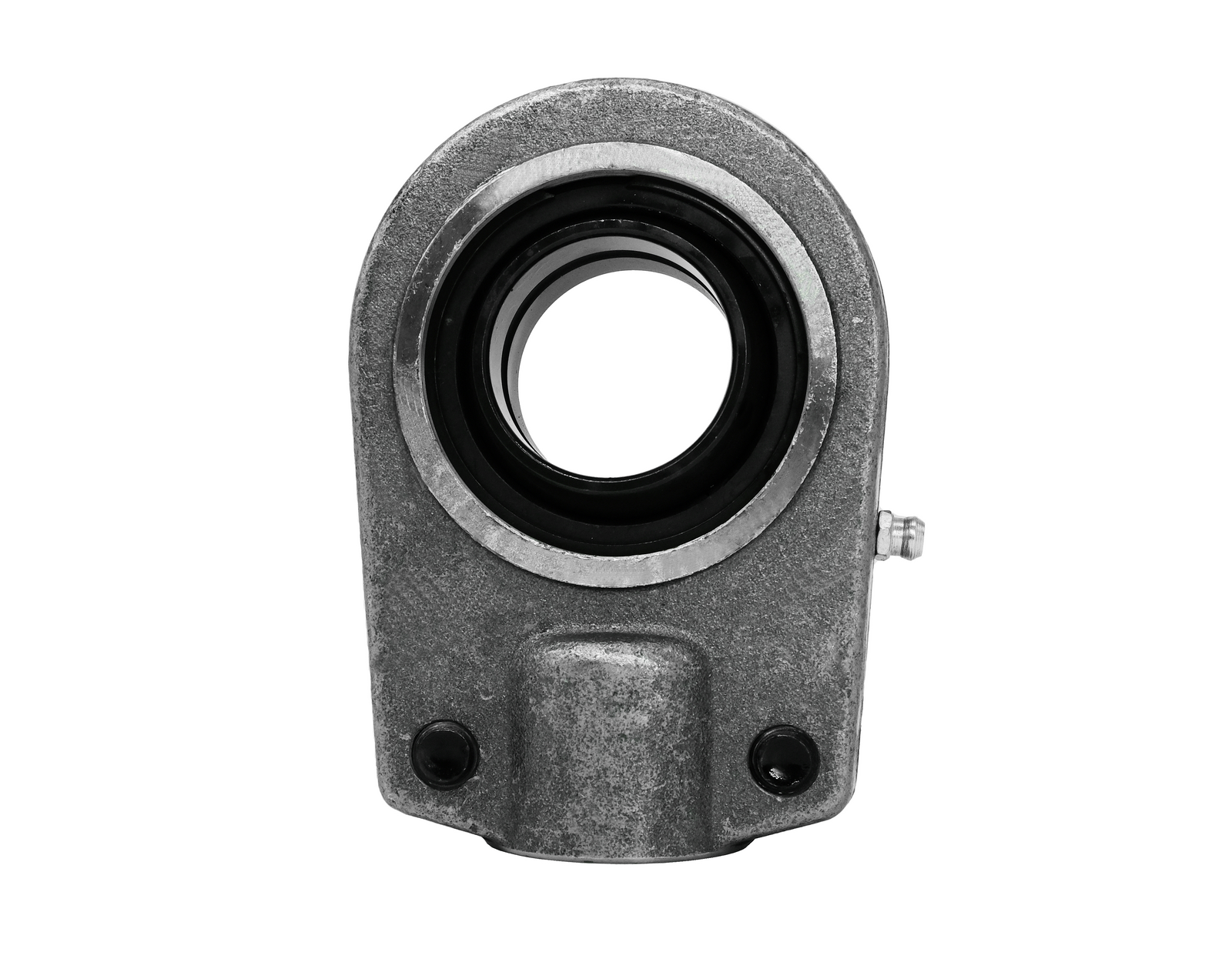

SIR70ES Economy Hydraulic Rod End Female RH Clamped (70mm)

$447.68



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SIR70ES-SDTZ
Shipping Weight 8.5000kg
Grade Economy
(d) Inside Ø (mm) 70
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 49
Contact Surface Steel/Steel
(l) Length (mm) 237
(s) Thread M65X1.50
(d²) Outside Ø (mm) 154
(c¹) Width (mm) 55
Mounting Female Clamped
