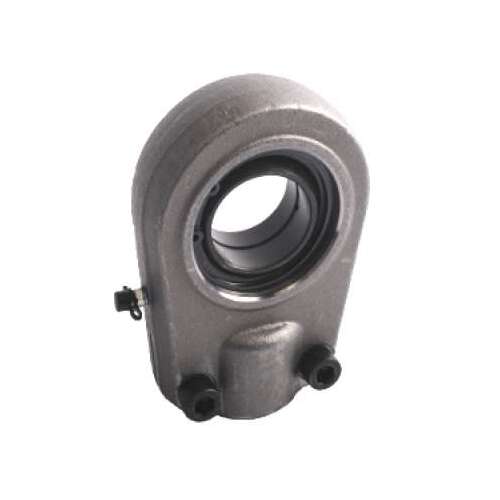

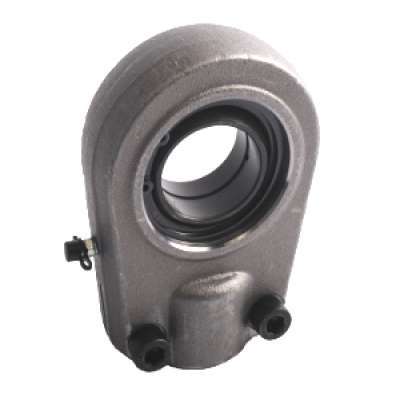

SIR100ET-2RS Hydraulic Rod End Female RH Clamped (100mm)

$1,930.30



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SIR100ET-2RS-LS
Brand LS
Shipping Weight 27.5000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.024000000m3
(d) Inside Ø (mm) 100
Seal 2RS - Rubber Seals on both sides
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 70
Contact Surface PTFE/Steel
(l) Length (mm) 350
(s) Thread M110X2.00
(d²) Outside Ø (mm) 231
(c¹) Width (mm) 70
Mounting Female Clamped
