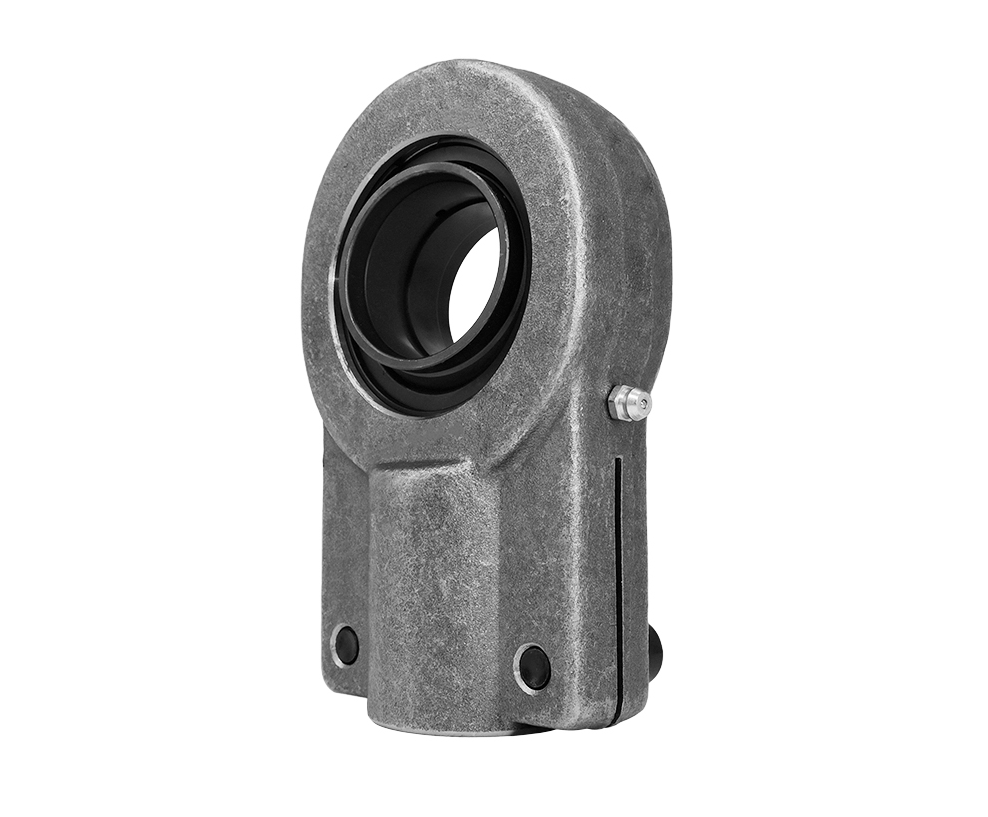

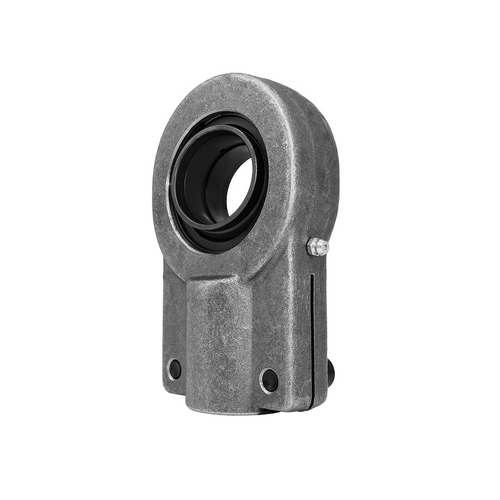

SIGEW50ES Economy Hydraulic Rod End RH Lubricated Clamped (50mm)

$425.27



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SIGEW50ES-SDTZ
Shipping Weight 4.4000kg
Grade Economy
(d) Inside Ø (mm) 50
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 50
Contact Surface Steel/Steel
(l) Length (mm) 179.5
(s) Thread M42X2.00
(d²) Outside Ø (mm) 109
(c¹) Width (mm) 41
Mounting Female Clamped
