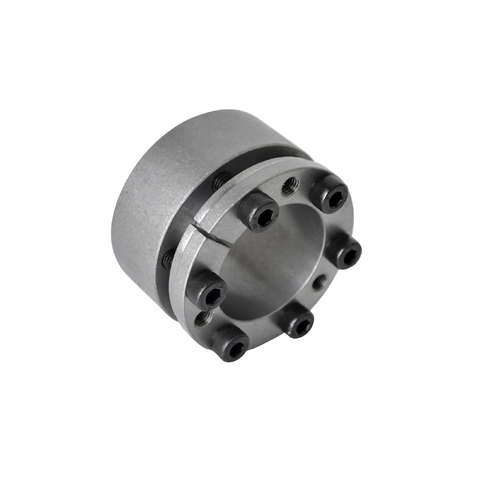

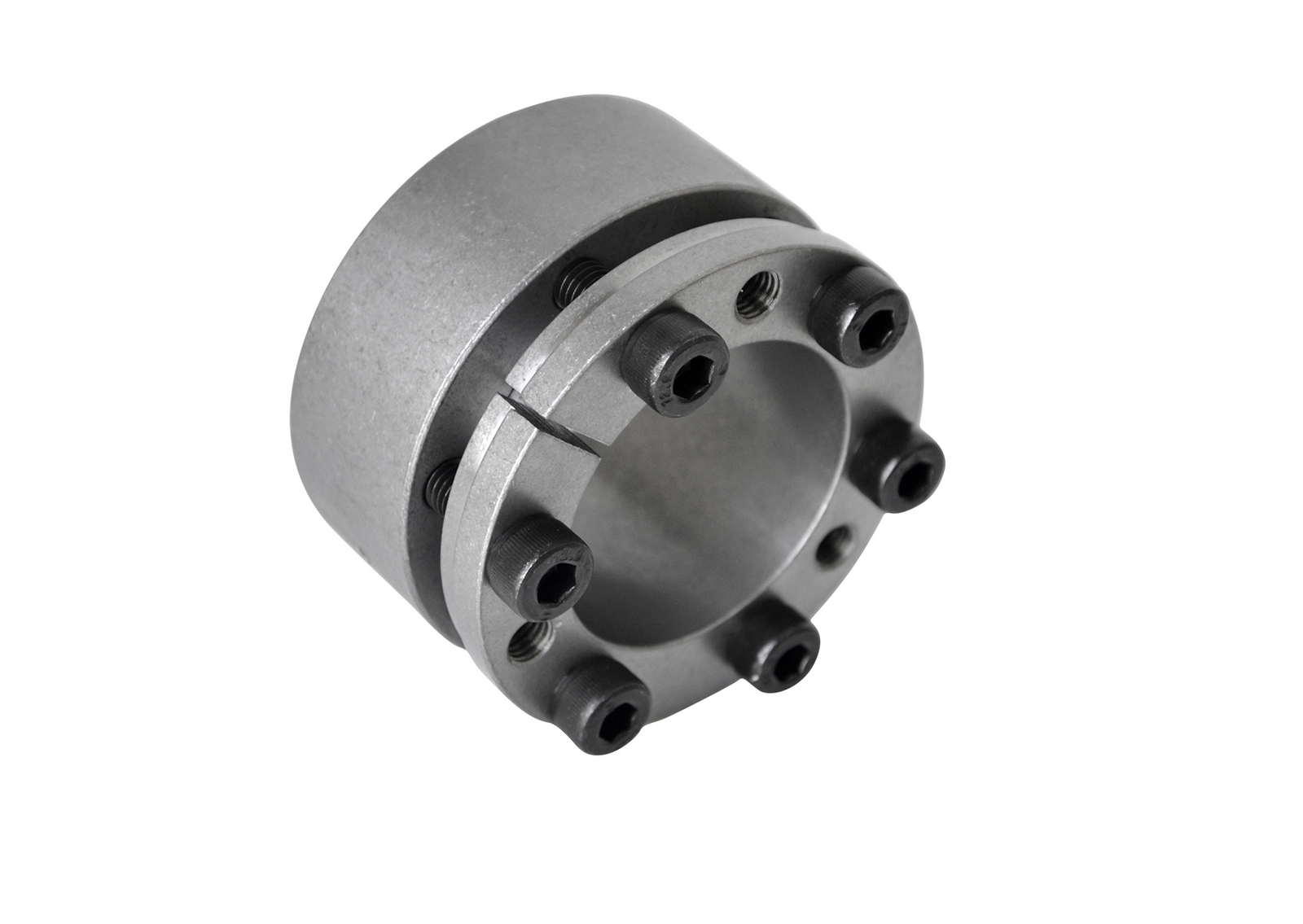

45X75mm Type 04 Locking Assembly Self Centering

$88.03
RRP $123.24
SAVE $35.21 (29%)



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

REACH04-45 Locking Assembly Type 04 45mm x 75mm - Self Centering

SKU REACH04-45
(d) Inside Ø (mm) 45
(D) Outside Ø (mm) 75
Dimension L¹ (mm) 30
Dimension L² (mm) 36
(L) Assembled Length (mm) 47
Locking Unit Type Type 04
No. Of Clamping Screws 6
Screw Size M8X30
Screw Tightening Torque (Nm) 41
Dimension L³ (mm) 47
