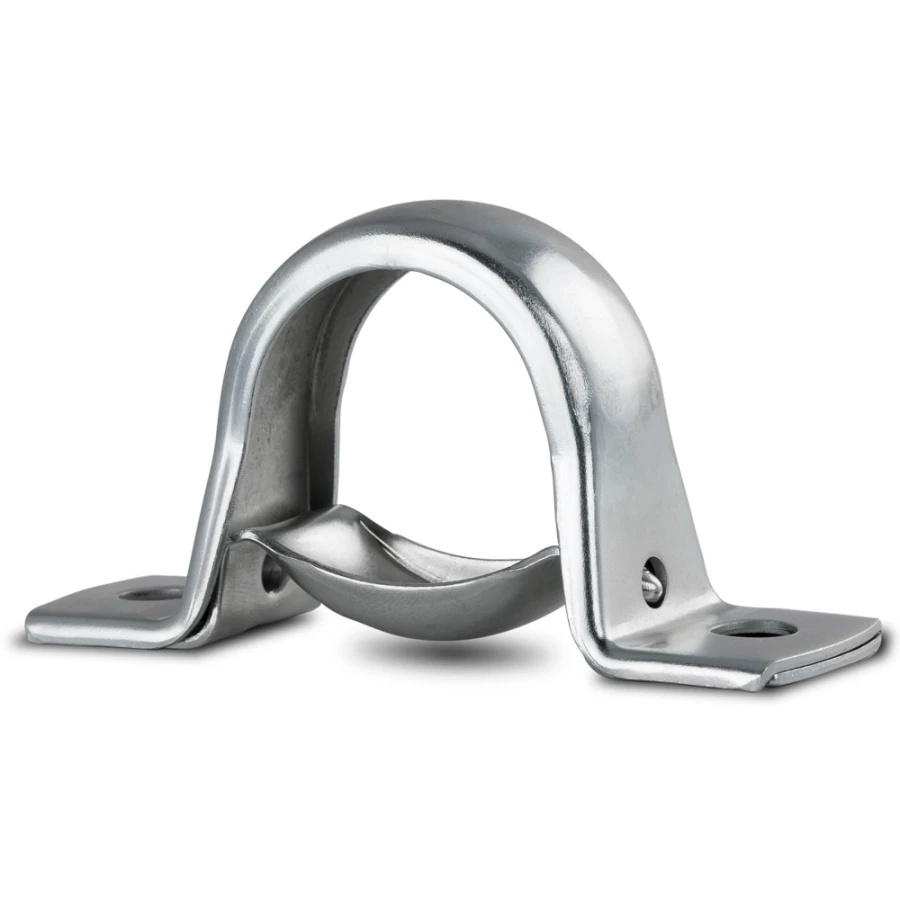

PP208 Economy Pillow Block Bearing Housing

$20.86



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU PP208-ECO
Brand NBR
Shipping Weight 0.3000kg
Grade Economy
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) ­20°C
Housing Type Pillow Block Housing
Housing Material Sheet Steel Zinc Plated
Number Of Mounting Holes 2
(l) Length (mm) 148
(a) Width (mm) 24.5
(j) Hole Centres (mm) 120
Bolt Size M10 or 3/8"
(h) Height To Centre Of Shaft (mm) 43.7
(h¹) Height Of Foot (mm) 5
(h²) Overall Height (mm) 86.5
