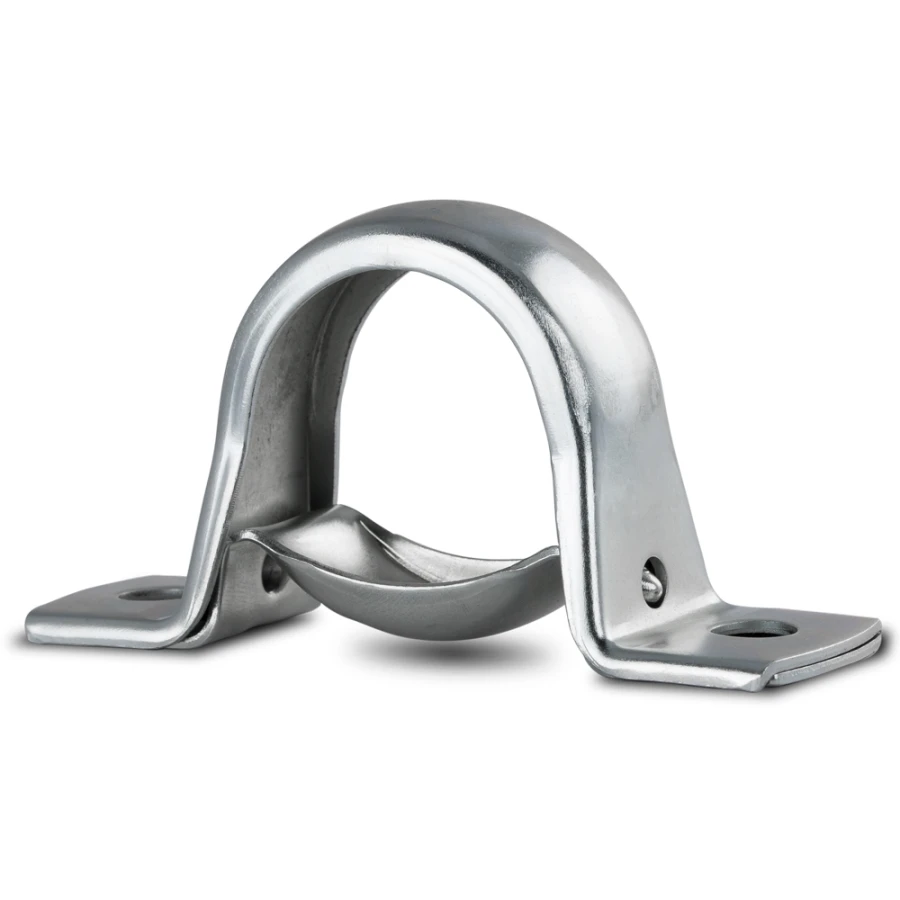

PP205 Economy Pillow Block Bearing Housing

$7.03



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU PP205-ECO
Brand NBR
Shipping Weight 0.1000kg
Grade Economy
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) ­20°C
Housing Type Pillow Block Housing
Housing Material Sheet Steel Zinc Plated
Number Of Mounting Holes 2
(l) Length (mm) 108
(a) Width (mm) 32
(j) Hole Centres (mm) 86
Bolt Size M10 or 3/8"
(h) Height To Centre Of Shaft (mm) 28.6
(h¹) Height Of Foot (mm) 4
(h²) Overall Height (mm) 56.6
