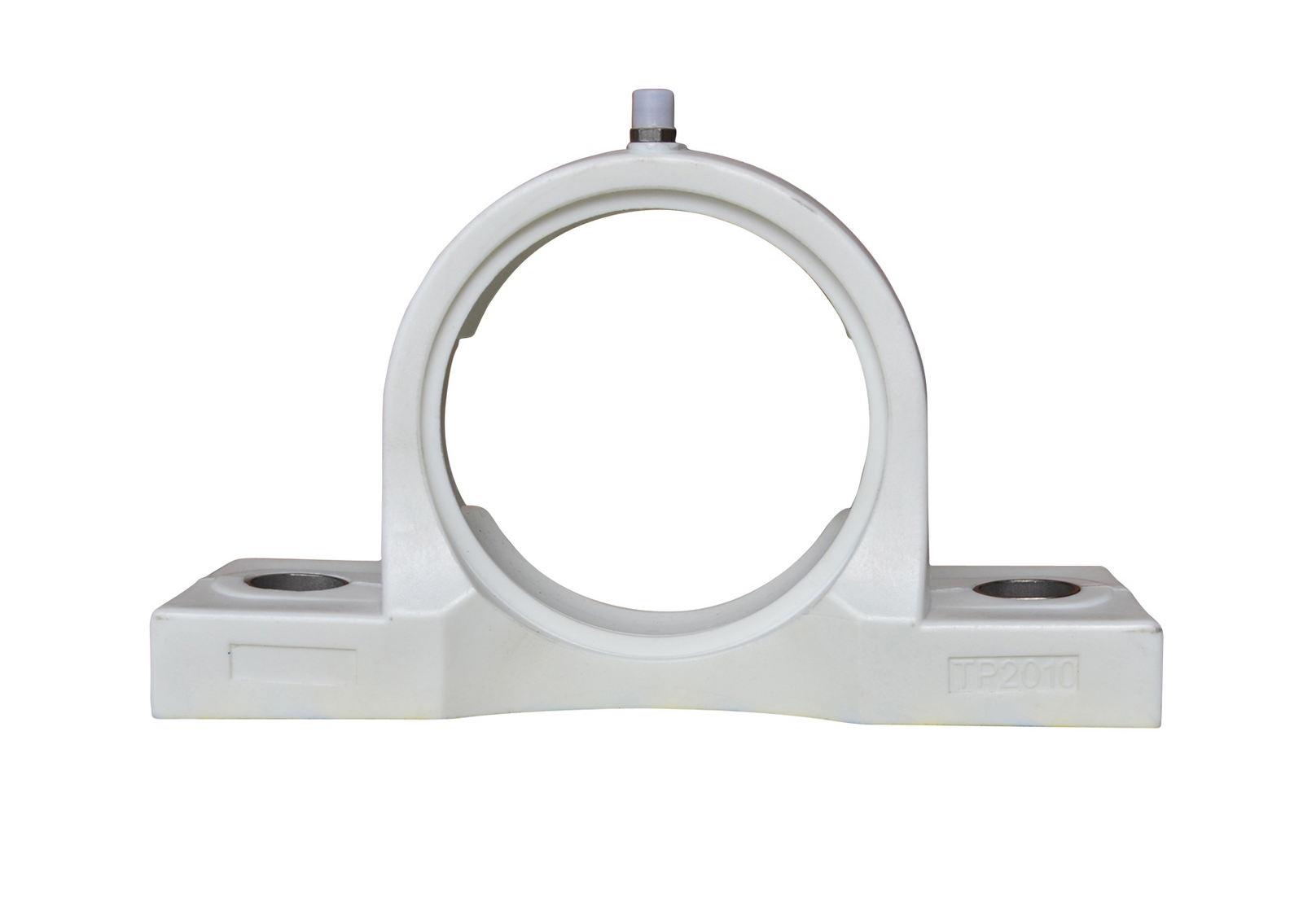

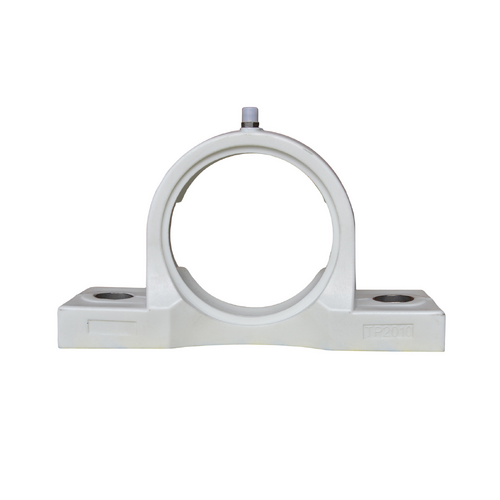

PL-P209 Economy Thermoplastic Pillow Block Bearing Housing incl. End Cap

$53.16



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU PL-P209-ECO
Brand NBR
Shipping Weight 1.2400kg
Grade Economy
Max. Operating Temperature (deg. C) +80°C
Min. Operating Temperature (deg. C) ­12°C
Housing Type Pillow Block Housing
Housing Material Thermoplastic
Number Of Mounting Holes 2
(l) Length (mm) 190
(a) Width (mm) 54
(j) Hole Centres (mm) 146
Bolt Size M14 or 1/2"
(h) Height To Centre Of Shaft (mm) 54
(h¹) Height Of Foot (mm) 20
(h²) Overall Height (mm) 106
