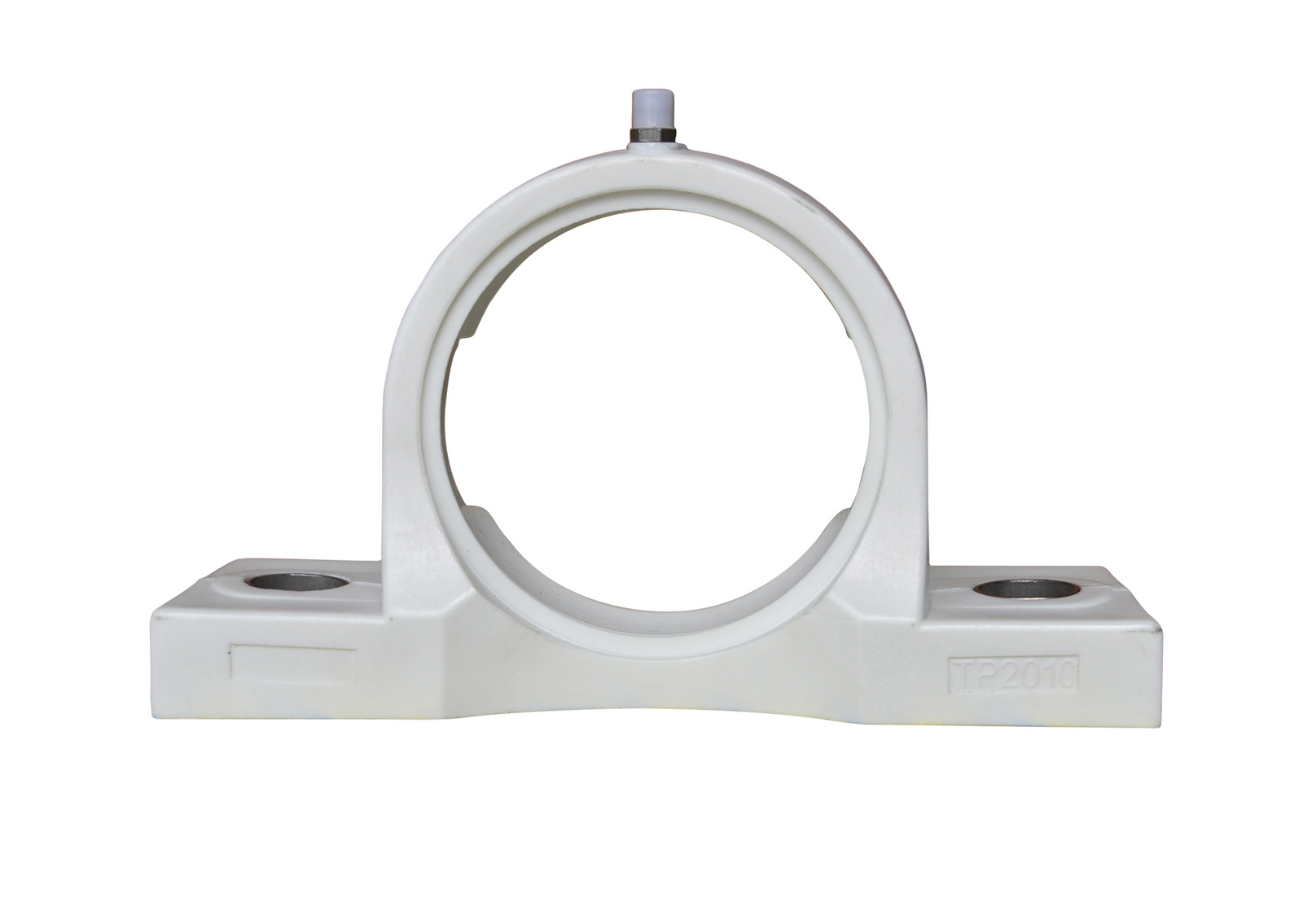

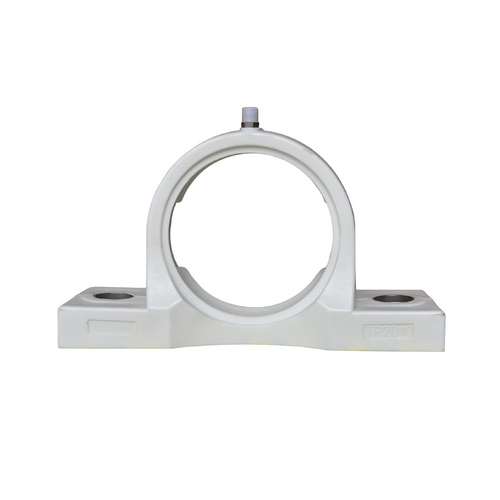

PL-P208 Economy Thermoplastic Pillow Block Bearing Housing incl. End Cap

$42.77



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU PL-P208-ECO
Brand NBR
Shipping Weight 1.0500kg
Grade Economy
Max. Operating Temperature (deg. C) +80°C
Min. Operating Temperature (deg. C) ­12°C
Housing Type Pillow Block Housing
Housing Material Thermoplastic
Number Of Mounting Holes 2
(l) Length (mm) 184
(a) Width (mm) 54
(j) Hole Centres (mm) 137
Bolt Size M14 or 1/2"
(h) Height To Centre Of Shaft (mm) 49.2
(h¹) Height Of Foot (mm) 18
(h²) Overall Height (mm) 98
