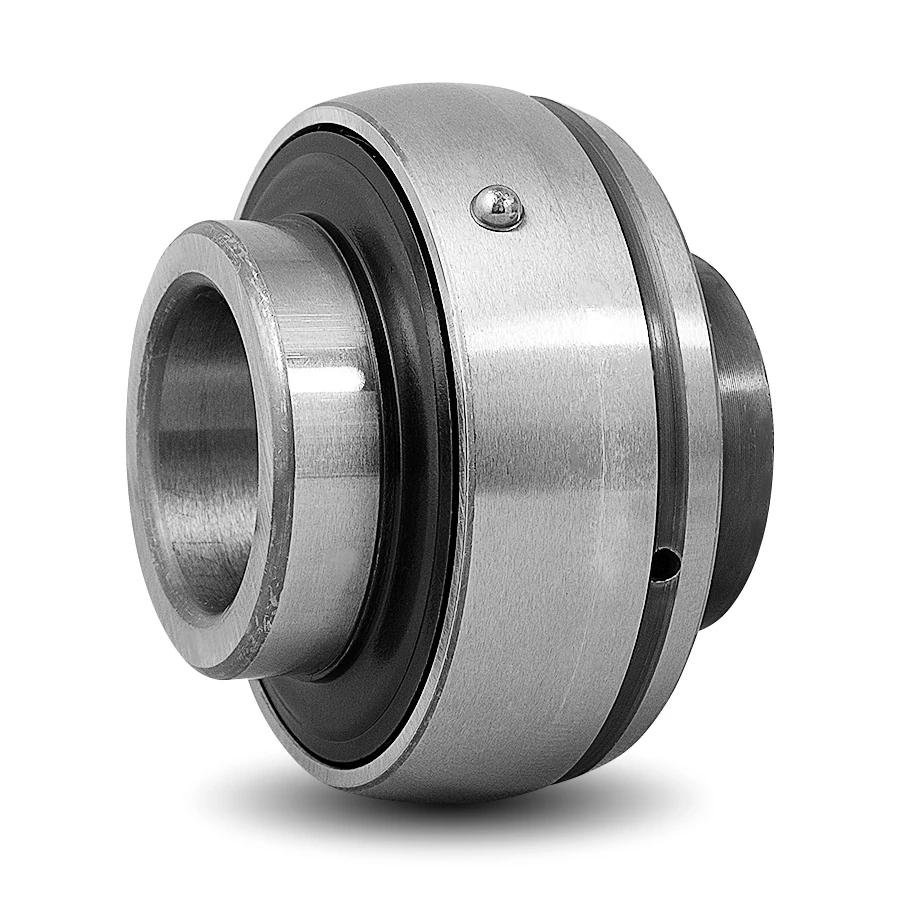

NA207-20 Economy Radial Insert Ball Bearing (1-1/4 Inch shaft)

$40.61



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
UG-Series Ball Bearings (Also known as NA or UEL or EW series) feature a locking collar which has a counterbored recess made purposely eccentric to the collar bore. When assembled on the shaft, this eccentric recess engages, or mates, with an eccentric cam end of a bearing’s inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly with a positive binding action that increases with use. No adjustments of any kind are necessary. The collar setscrew provides supplementary locking.
SKU NA207-20-ECO
Brand Craft
Shipping Weight 0.6000kg
Lifetime Lubricated Yes
Shaft Fastening Eccentric Collar
(l) Overall Width (mm) 51.1
Outer Race Spherical
Extended Inner Ring Both Sides
(B) Width Of Inner Ring (mm) 37.6
(C) Width Of Outer Ring (mm) 20
Norm. DIN 626-1
Min. Operating Temperature (deg. C) ­20°C
Max. Operating Temperature (deg. C) +120°C
Grade Economy
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Seal 2 Piece Seal
(D) Outside Ø (mm) 72
(d) Inside Ø (mm) 31.75 (1-1/4")
Bore Cylindrical
