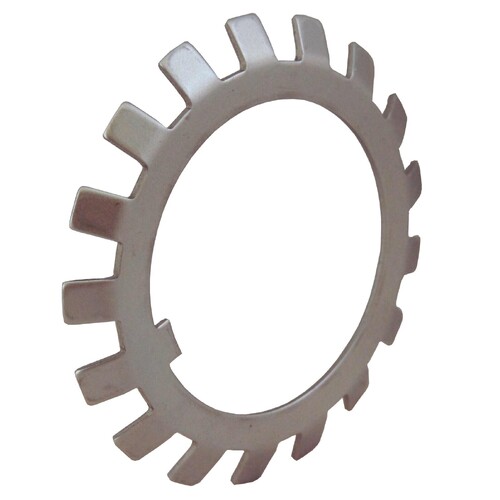

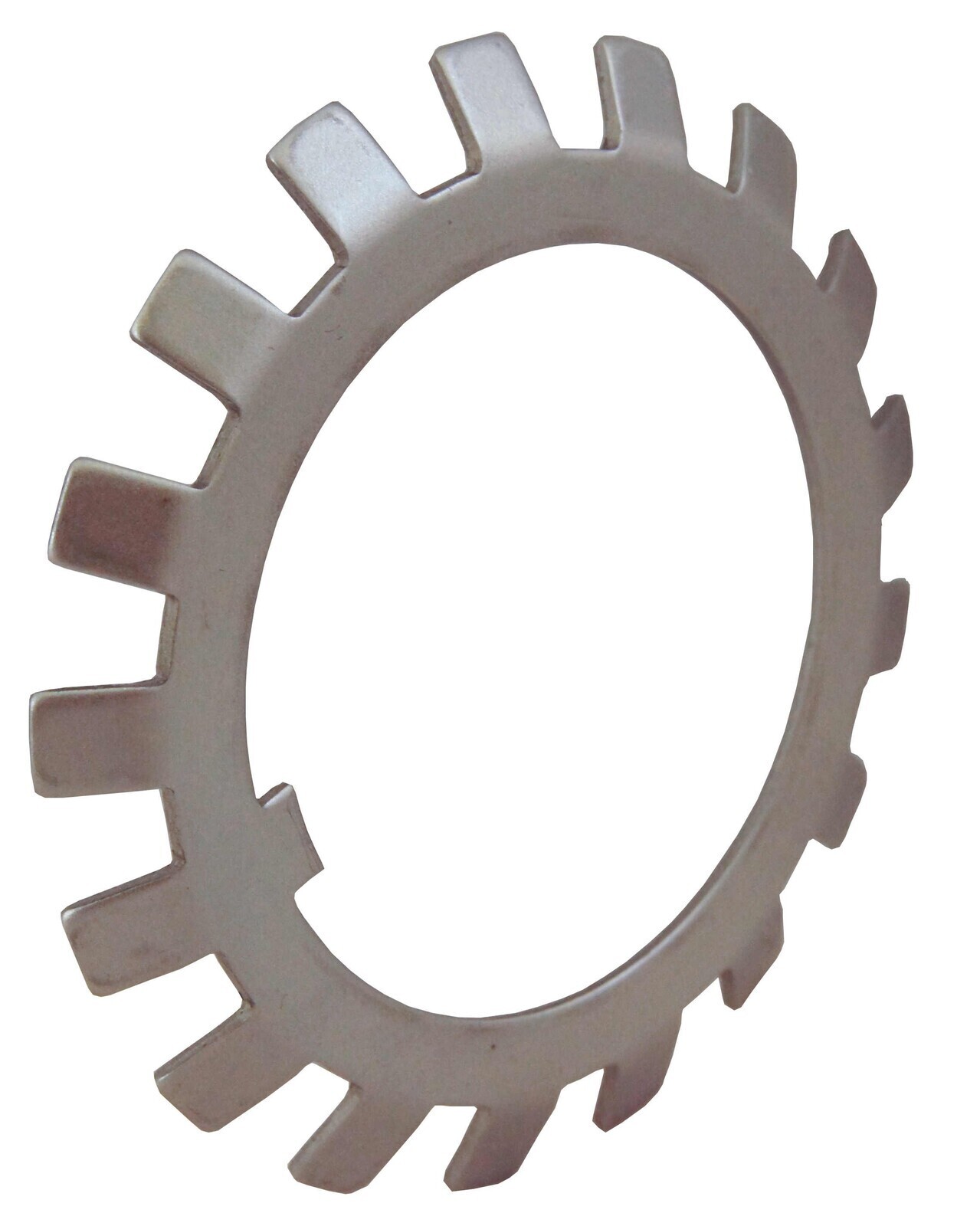

MB20 Bearing Tab Washer Metric 100mm

$26.62



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU MB20
Shipping Weight 0.0765kg
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
(d²) Outside Ø (mm) 142
Norm DIN 5406
(d) Bore Diameter (mm) 100
(d¹) Side Face Diameter (mm) 120
(B) Material Thickness (mm) 1.8
(f) Width Of Inner Tab (mm) 12
(M) Inside Dimension Under Inner Tab (mm) 96.5
No. Of Tangs 19
