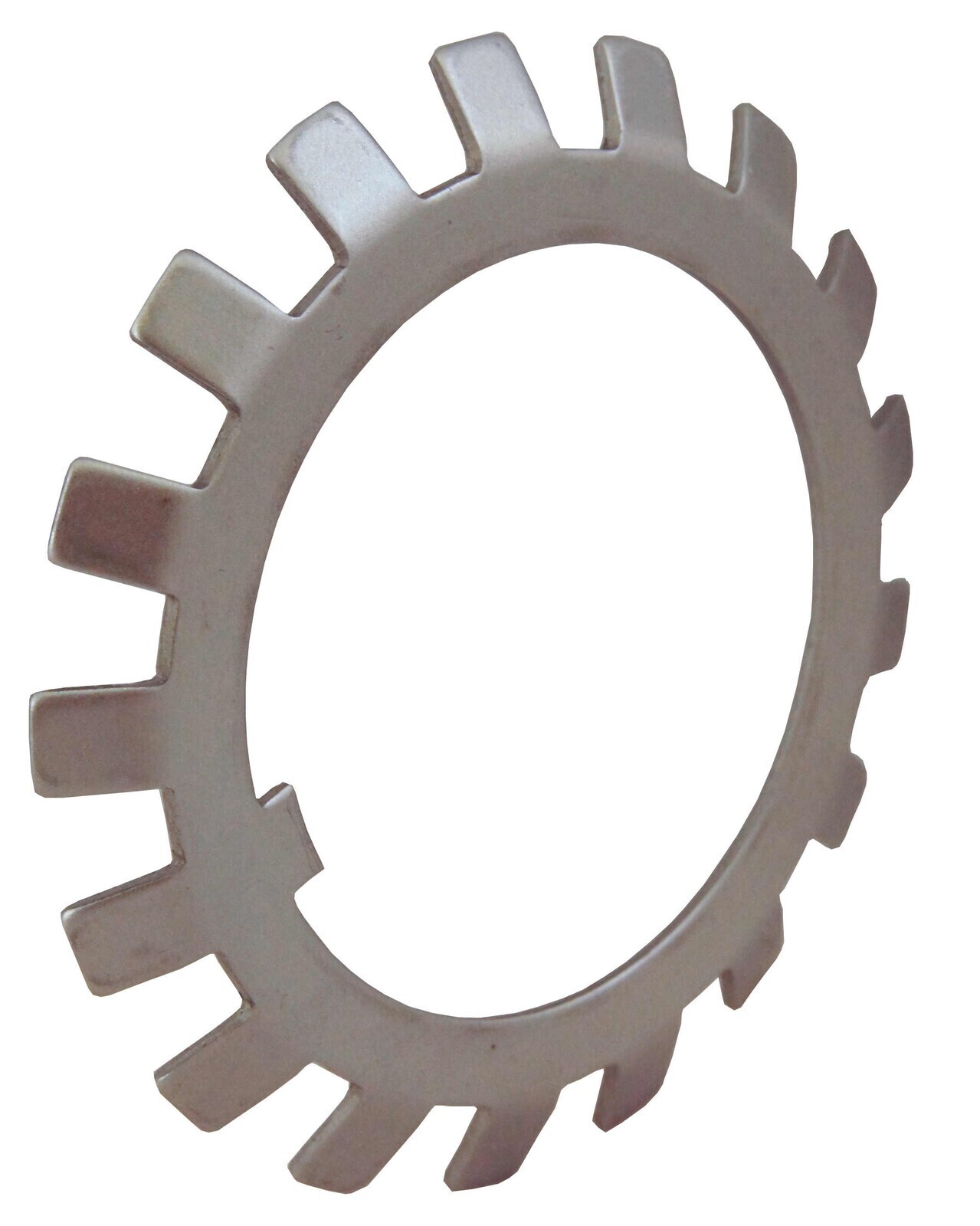

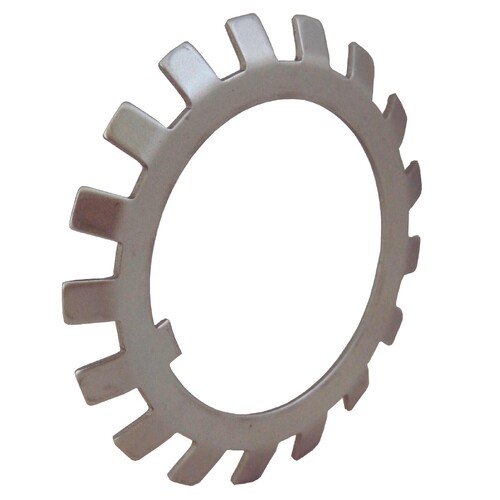

MB14 Bearing Tab Washer Metric 70mm

$10.45



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU MB14
Shipping Weight 0.0334kg
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
(d²) Outside Ø (mm) 98
Norm DIN 5406
(d) Bore Diameter (mm) 70
(d¹) Side Face Diameter (mm) 85
(B) Material Thickness (mm) 1.5
(f) Width Of Inner Tab (mm) 8
(M) Inside Dimension Under Inner Tab (mm) 66.5
No. Of Tangs 19
