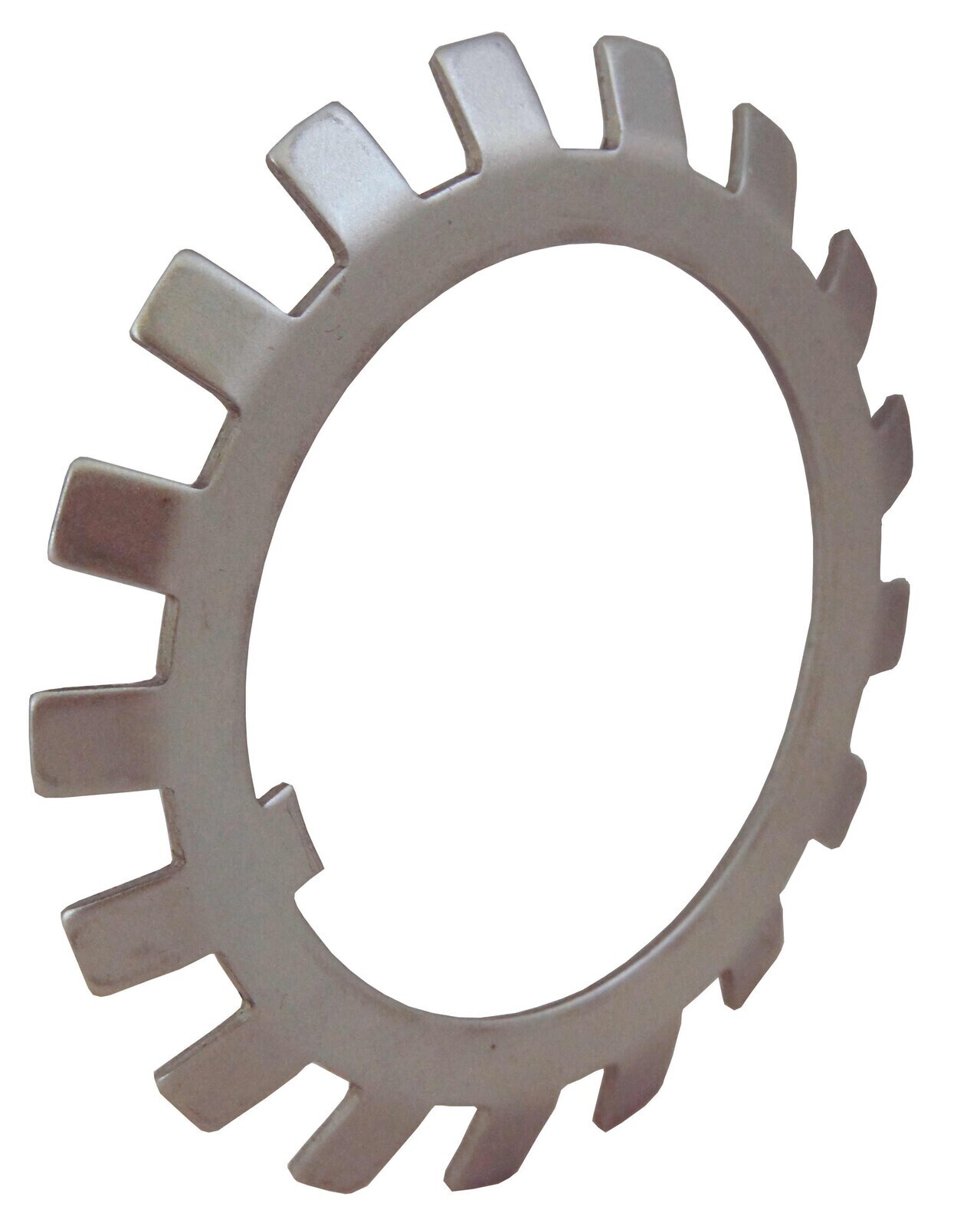

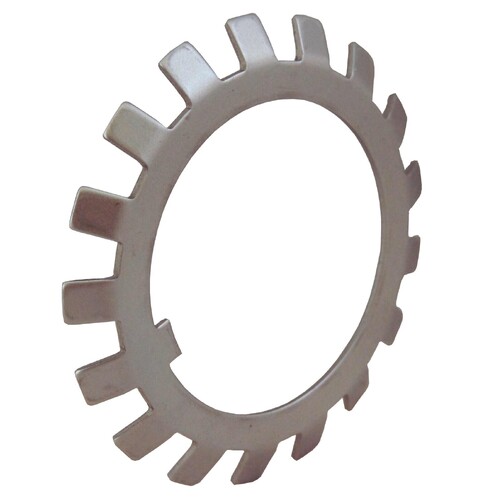

MB03 Bearing Tab Washer Metric 17mm

$1.76

Low Stock


Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU MB03
Shipping Weight 0.0031kg
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
(d²) Outside Ø (mm) 32
Norm DIN 5406
(d) Bore Diameter (mm) 17
(d¹) Side Face Diameter (mm) 24
(B) Material Thickness (mm) 1
(f) Width Of Inner Tab (mm) 4
(M) Inside Dimension Under Inner Tab (mm) 15.5
No. Of Tangs 13
