MACC 315MM 3PH 40/80RPM DOUBLE VICE COLDSAW WITH CLUTCH, FOOT CONTROLLED PNEUMATIC VICE ELECTRIC COOLANT PUMP

$6,495.01



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
  • As per NEW315DV with addition of pneumatic vice.
  • Vice automatically closes when triggered from foot control.
  • Italian made quality.
  • Swivel head 45° left & right.
  • Trigger switch operation.
  • Quick locking double vice for burr free cutting.
  • Blade protection clutch, suitable for cutting profile steels or tube where multiple material thicknesses are being cut in 1 pass. The clutch will protect the cutting teeth and material when passing from the thin easier to cut material into the thick harder to cut material.
  • Recirculating coolant system.
  • Safety emergency stop switch.
  • Adjustable material stop for repetitive production.
  • 12 months warranty.
  • Comes complete with blade.

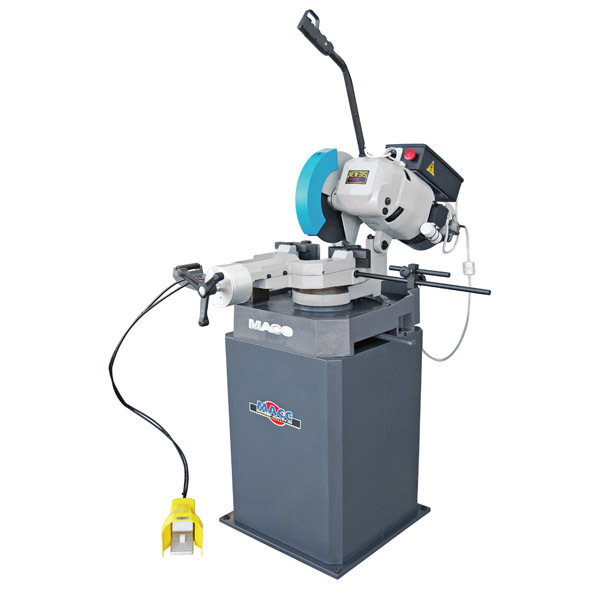

  • Pictured with optional stand - Part# MC-STAND315



  • Motor: 3hp Three Phase (415V)
  • Blade Speed: 2 Speed 40 / 80rpm
  • Blade Size: 315mm
  • Blade Bore: 32mm
  • Weight: 175kg


90° Cutting Capacity:





  • Solid Round: 65mm
  • Hollow Round: 90mm
  • Square: 85mm
  • Rectangle: 120 x 70mm


45° Left & Right Cutting Capacity:





  • Solid Round: 60mm
  • Hollow Round: 80mm
  • Square: 70mm
  • Rectangle: 80 x 70mm



SKU MC-NEW315EDPV-3
Barcode # 9328042032768
Shipping Weight 195.0000kg
Shipping Width 0.740m
Shipping Height 0.770m
Shipping Length 0.950m
