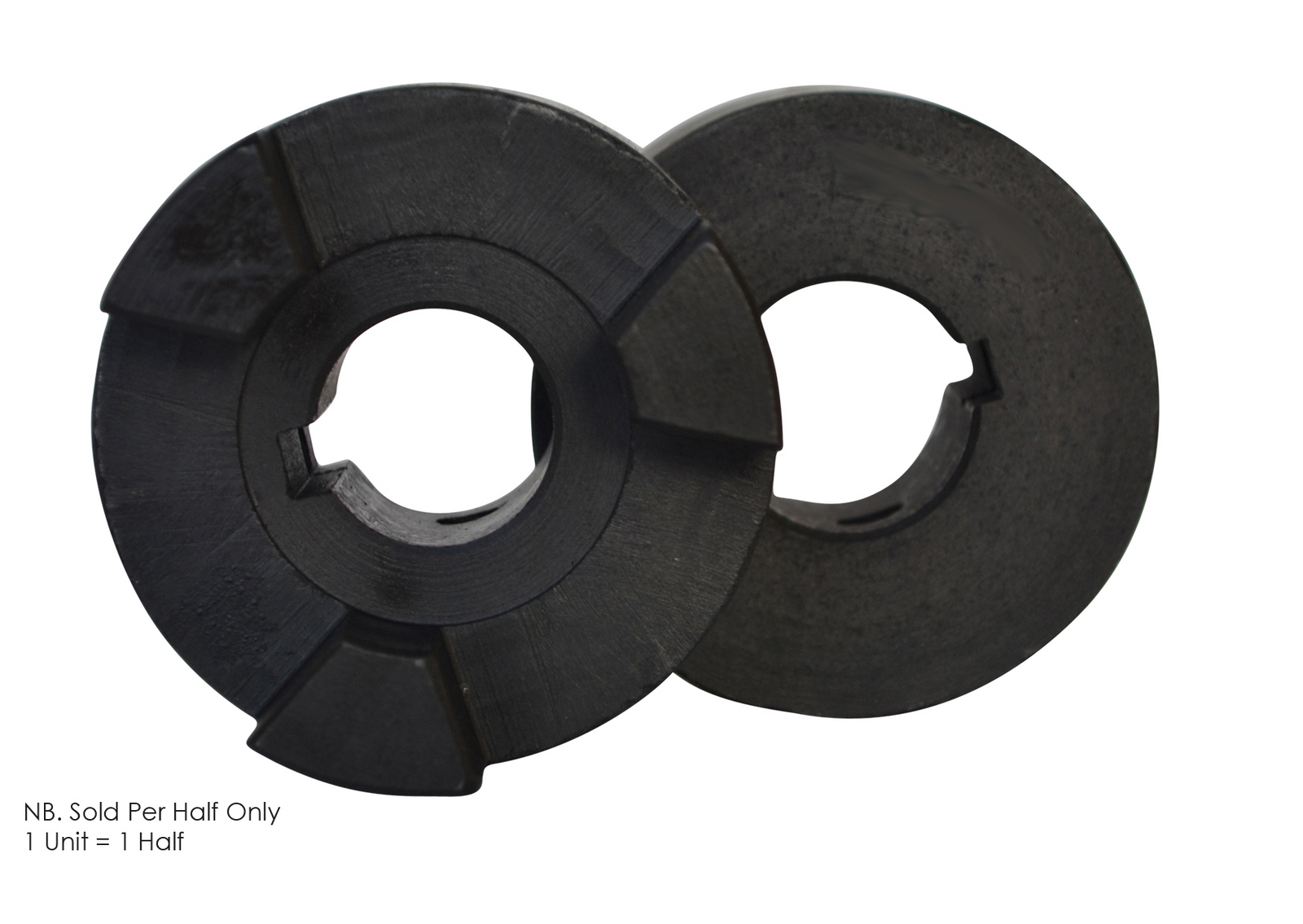

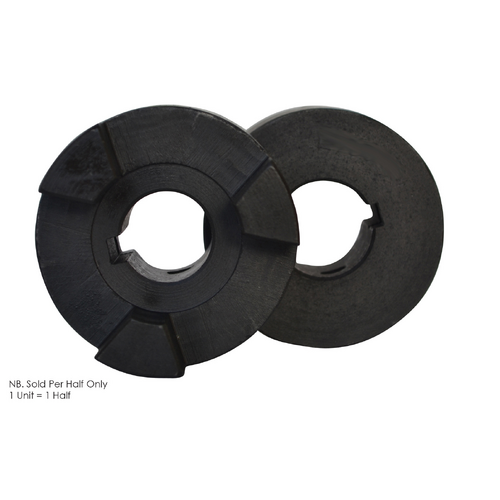

Jaw Coupling Half L190 Hub Side Taper Lock Centre

$130.52



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU L190TL-H
Bore Taper Lock
Compatible Bush 1610
Max. Bore (mm) 42 (1-11/16")
Dimension C (mm) 6.5
Dimension D (mm) 25.5
Hub Type H - Bush Installed on Hub Side
Max. RPM 3600
Nominal Torque (Nm) 200
(A) Outside Ø Hub (mm) 115
(B) Outside Ø Boss (mm) 102
(L) Assembled Length (mm) 77
