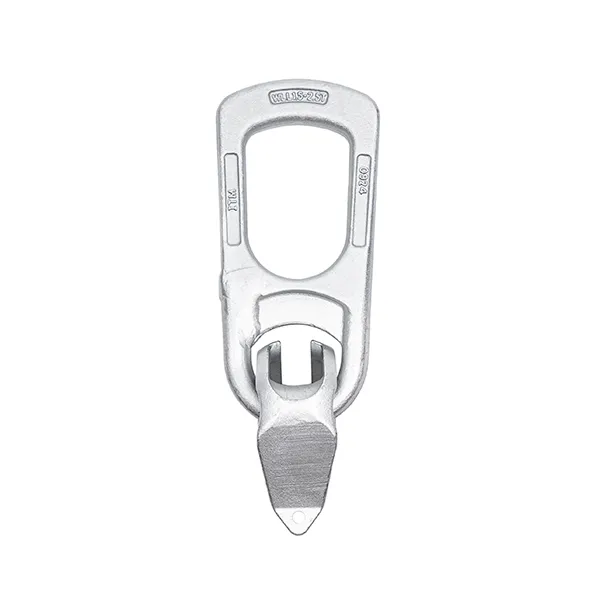

ITM Concrete Lifting Clutch, Panel Lifter, 2.5T

$0.00



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery *NO PO BOXES*

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
  • Specifically designed for lifting precast concrete elements with an embedded pin
  • Easily engages under load, ensuring proper connection
  • Simple clutch release when lifting completed
  • Available in working load limits ranging from 1.3t to 20t
  • Tested and certified to AS 3850.1
  • W.L.L. (t): 2.5
  • B.L. (t): 10
  • Dimension A (mm): 41
  • Dimension B (mm): 49
  • Dimension C (mm): 102
  • Dimension D (mm): 85
  • Dimension E (mm): 57
  • Dimension F (mm): 88
  • Dimension H (mm): 188
  • Dimension M (mm): 16
  • Dimension L (mm): 227
  • Dimension G (mm): 27
  • Dimension K (mm): 14
  • Weight (kg): 1.3
SKU TM9814-00025
Barcode # 9328042047601
Brand ITM
Shipping Weight 1.5000kg
