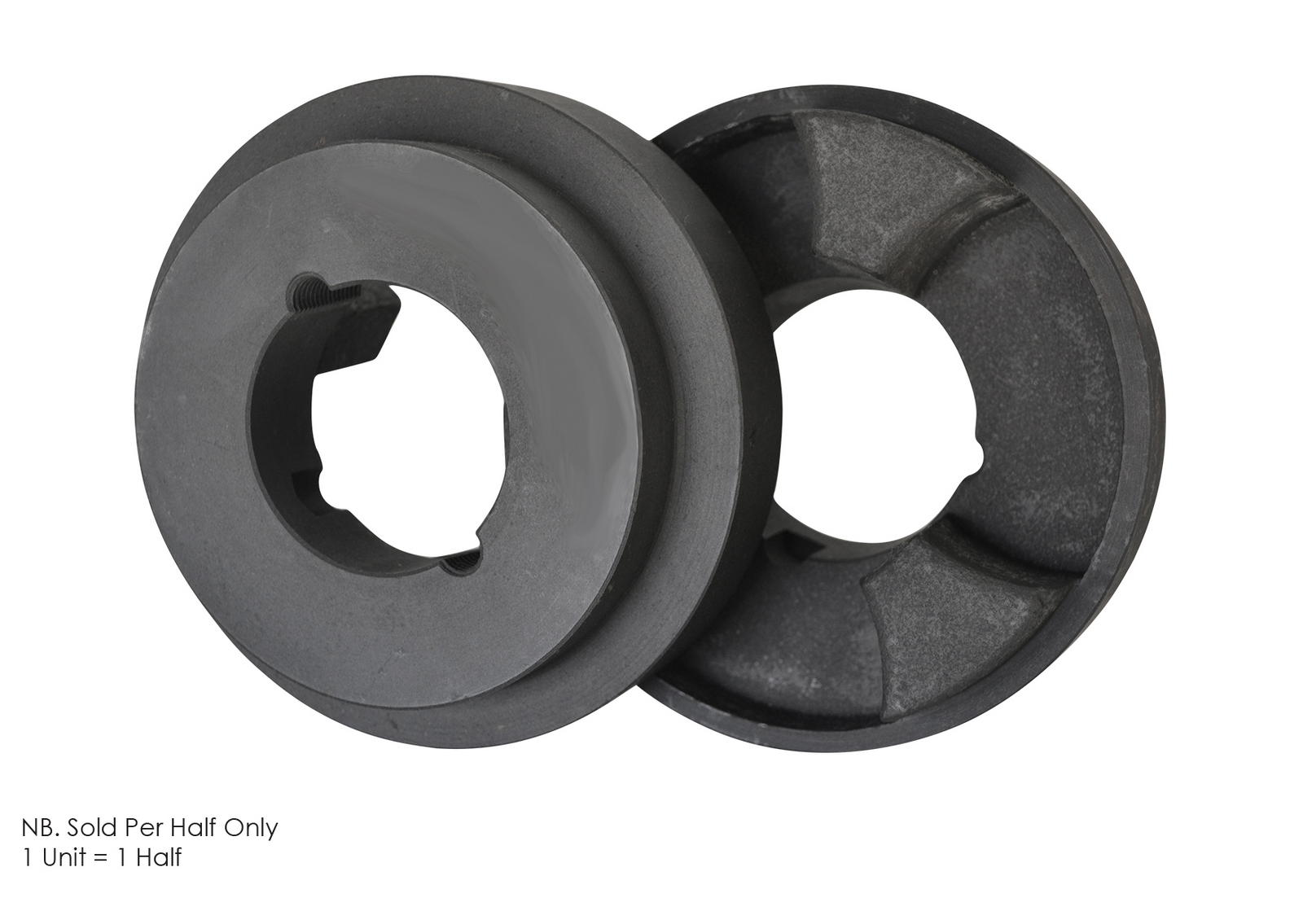

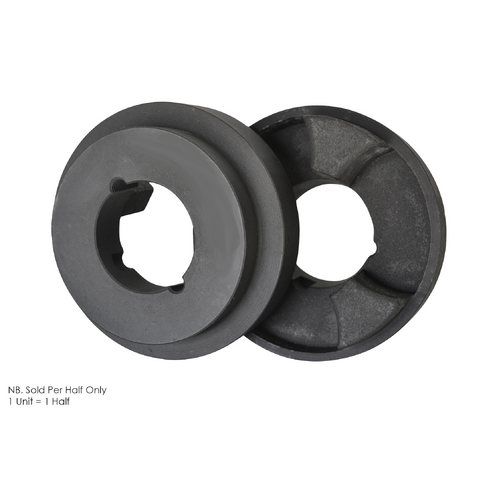

HRC Coupling Half HRC70F Flange Side Taper Lock Centre

$23.08

Low Stock


Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU HRC70F
Shipping Weight 1.0000kg
Bore Taper Lock
Compatible Bush 1008
Max. Bore (mm) 25 (1")
Dimension C (mm) 20
Dimension D (mm) 23.75
Hub Type F - Bush Installed on Flange Side
Nominal Torque (Nm) 31
(A) Outside Ø Hub (mm) 69
(B) Outside Ø Boss (mm) 60
Dimension F (mm) 25
Dimension J (mm) 29
(L) Assembled Length (mm) 65
