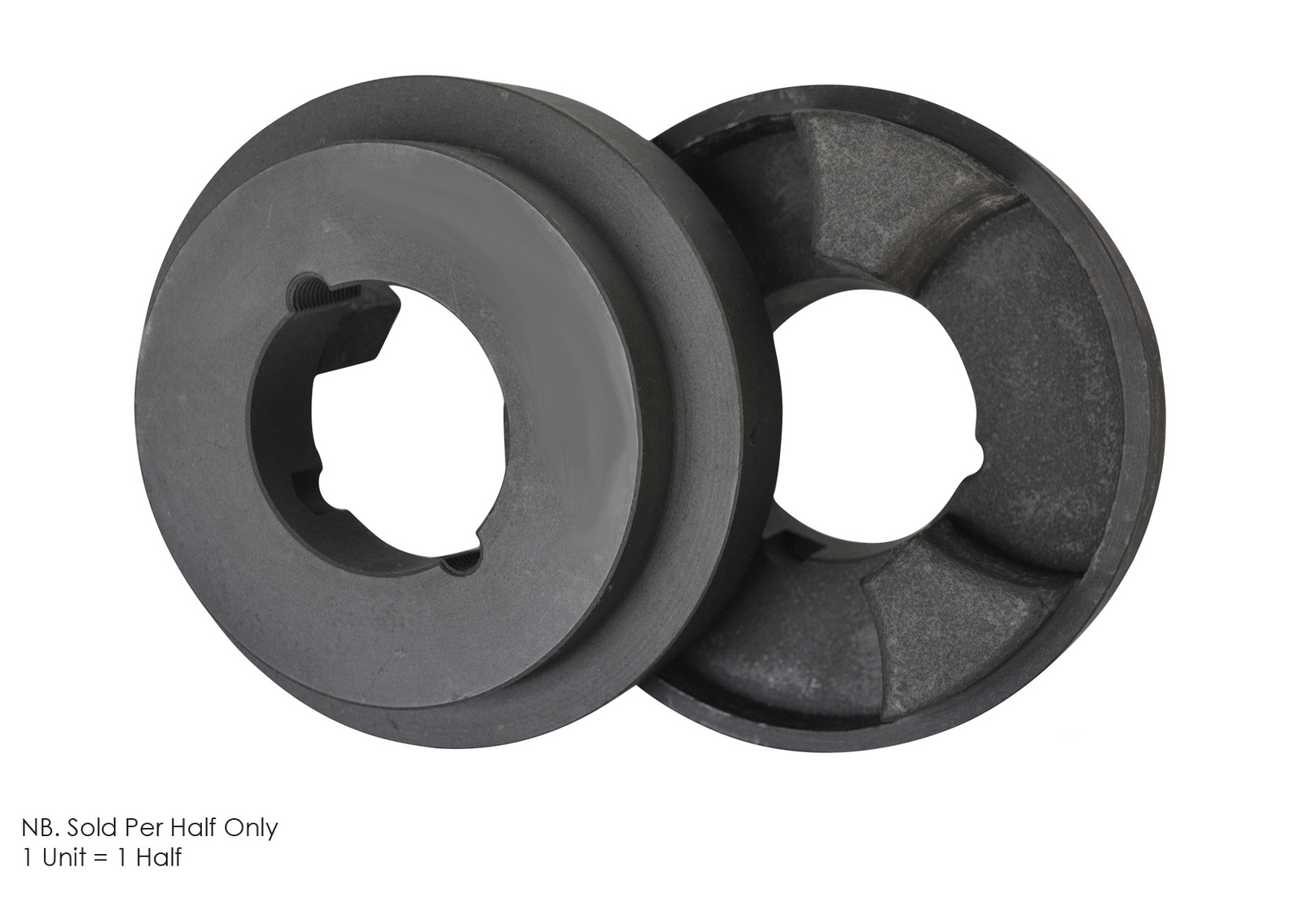

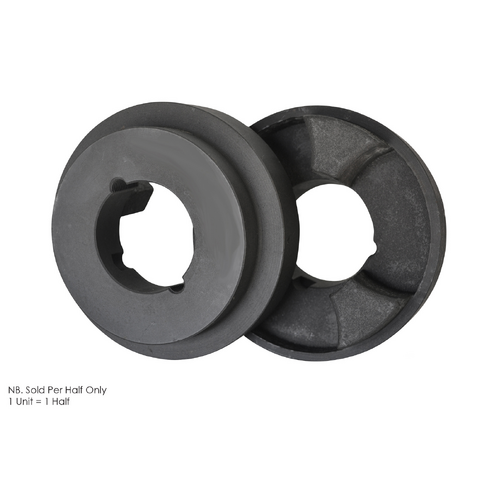

HRC Coupling Half HRC230F Flange Side Taper Lock Centre

$219.78



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU HRC230F
Shipping Weight 26.0000kg
Bore Taper Lock
Compatible Bush 3020
Max. Bore (mm) 75 (3")
Dimension C (mm) 39.5
Dimension D (mm) 52.5
Hub Type F - Bush Installed on Flange Side
Nominal Torque (Nm) 2000
(A) Outside Ø Hub (mm) 225
(B) Outside Ø Boss (mm) 155
Dimension F (mm) 85.5
Dimension J (mm) 55
(L) Assembled Length (mm) 164.5
