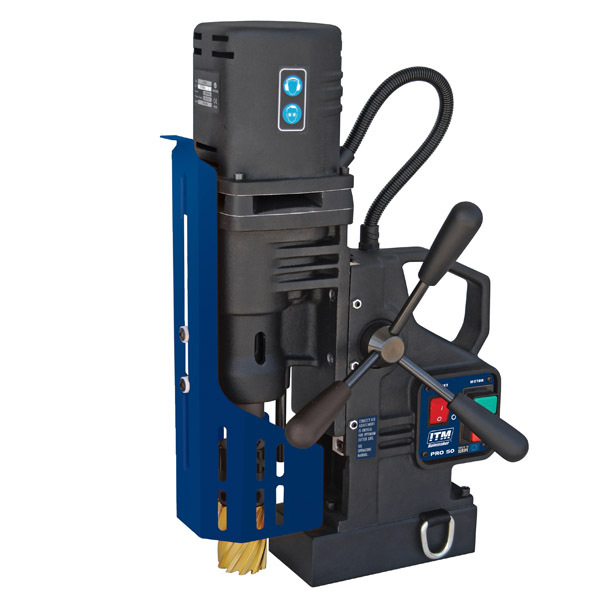

Holemaker PRO50 Magnetic Base Drill- With Quick Grip Arbor, 240V, 2MT, Cap: 52mm Dia x 52mm

$3,440.00



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
The ability to use Holemaker cutters, No. 2 Morse Taper shank drills & reamers, as well as a drill chuck makes this a very multi-purpose machine.
Satisfying most requirements with a capacity of 52mm diameter & 52mm depth of cut when using Holemaker cutters, and 23mm diameter using taper shank drills or reamers. An industrial 2 speed gearbox and 1260w motor provide a strong hardworking machine.
The Quick Grip Arbor System offers a fast, tool-less approach to inserting and removing Holemaker cutters. Suitable for use with standard Weldon Shank annular cutters with 2 flat sections at 90°, as well as Holemaker universal shank cutters.
Other standard features include cast iron construction, gravity feed coolant system & left or right hand feed handle operation.
The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge orexperience.

Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy duty versatile machine is highly beneficial.

Capacity ( Diameter ): 52mm
Capacity ( Depth ): 52mm
Capacity ( Twist Drill ): #2 Morse Taper 23mm
Motor Power: 1260 watt
Input Power: 1340 watt Single Phase 240V
Speed: 2 speed (200 / 400rpm)
Weight: 16.5kg
Magnetic Dead Lift: 12000Nm On 25mm Steel Plate
Stroke: 153mm
Height: 426mm min / 579mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
SKU HMPRO50QG
Barcode # 9328042016188
Brand Holemaker
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.280m
Shipping Length 0.600m
Type Mag Base Drill
