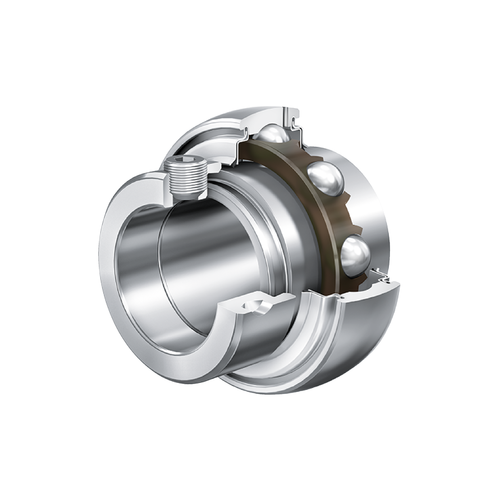

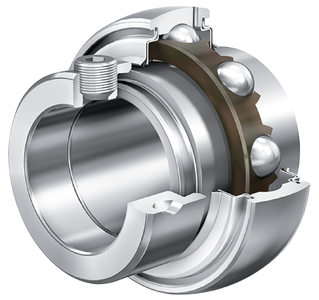

GNE40-XL-KRR-B Radial insert Ball Bearing Spherical Outer Ring with Eccentric locking collar, R seals on both sides

$285.12
RRP $342.14
SAVE $57.02 (17%)



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery *NO PO BOXES*

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

Main Dimensions & Performance Data

d 40 mm Bore diameter
DSP 90 mm Outside diameter
B 41 mm Width
B1 54.6 mm Locking collar total width
nG Grease 9,100 1/min Limiting speed for grease lubrication
Cr 47,000 N Basic dynamic load rating, radial
C0r 26,000 N Basic static load rating, radial
Cur 1,360 N Fatigue load limit, radial
≈m 1.02 kg Weight

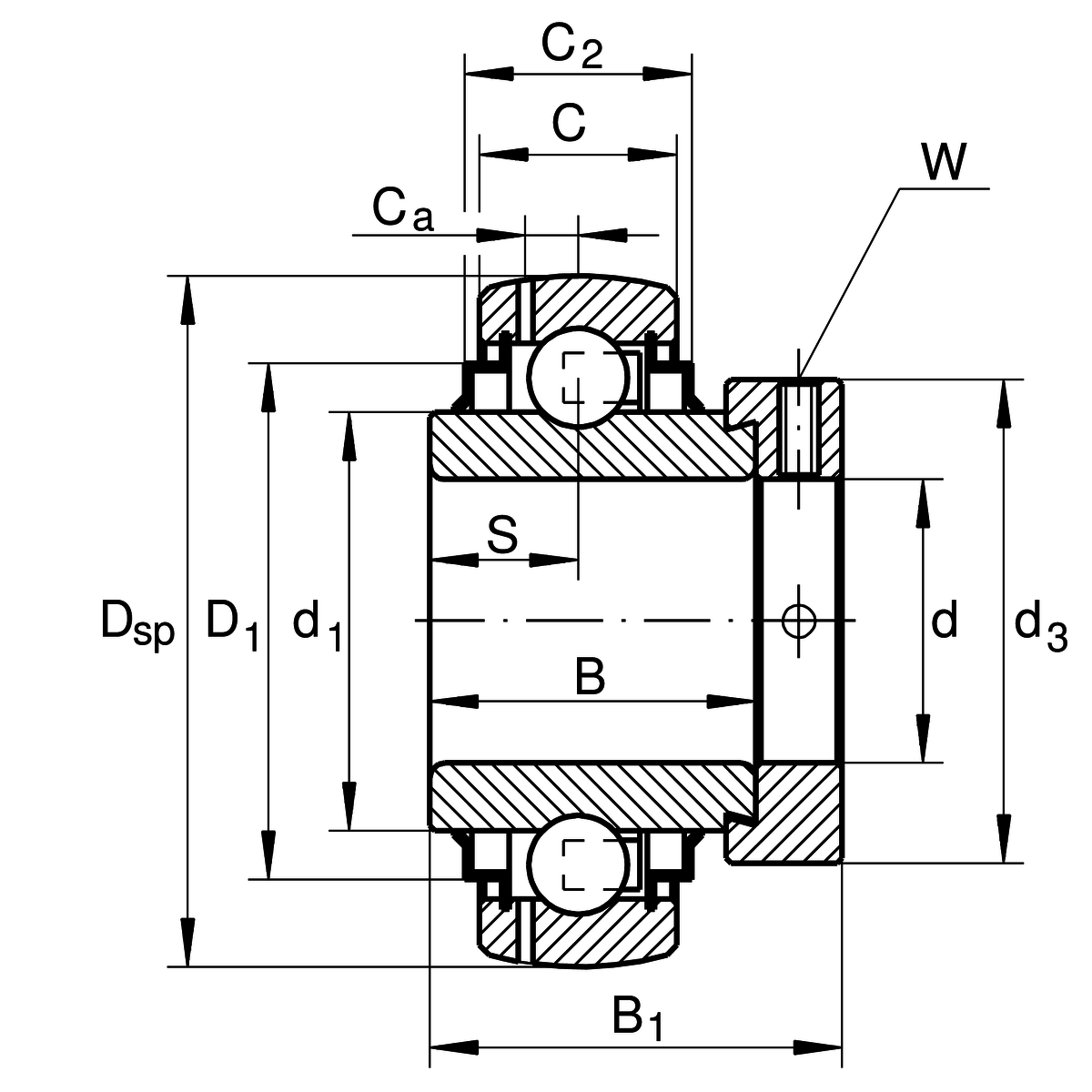

Dimensions

C 23 mm Width, outer ring
C2 26 mm Sealing total width
S 18 mm Distance raceway
d1 53.8 mm Rib diameter inner ring
D1 74.5 mm Outside diameter seal
Ca 7.5 mm Distance to lubrication hole
d3 63 mm Outside diameter locking collar/locknut
W 5 mm Width of flats

Additional information

f0 12.9 Calculation factor
SKU GNE40-XL-KRR-B
Brand INA
Grade Premium
Inside Diameter (bore Size) 40mm
Outside Diameter 90mm
Overall Width 54.6mm
Prefix GNE
