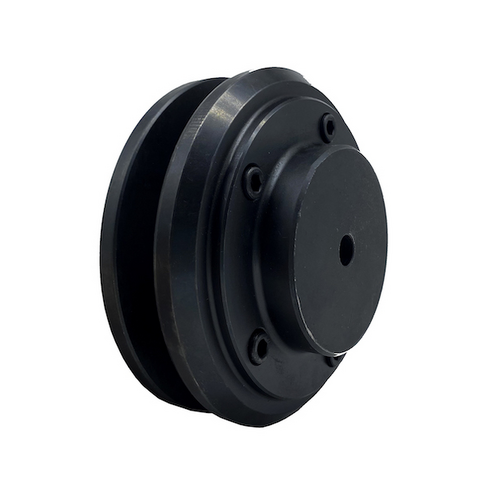

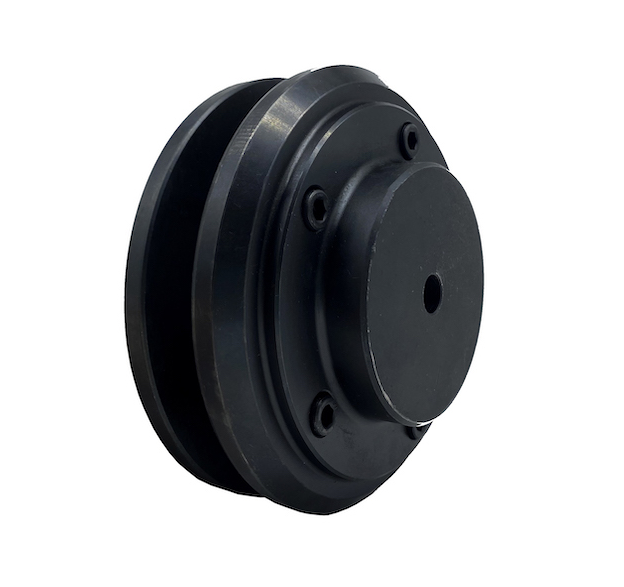

Flexible Tyre Coupling Half F40 B Flange Pilot Bore Centre

$36.80



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU F40B
Shipping Weight 0.8000kg
Bore PILOT BORE
Min. Bore (mm) 10
Max. Bore (mm) 25
Dimension E (mm) 22
Dimension L (mm) 33
Dimension M (mm) 11
Hub Type B - Pilot Bore
Max. RPM 4500
Nominal Torque (Nm) 25
(A) Outside Ø Tyre (mm) 104
(C) Outside Ø Hub (mm) 82
