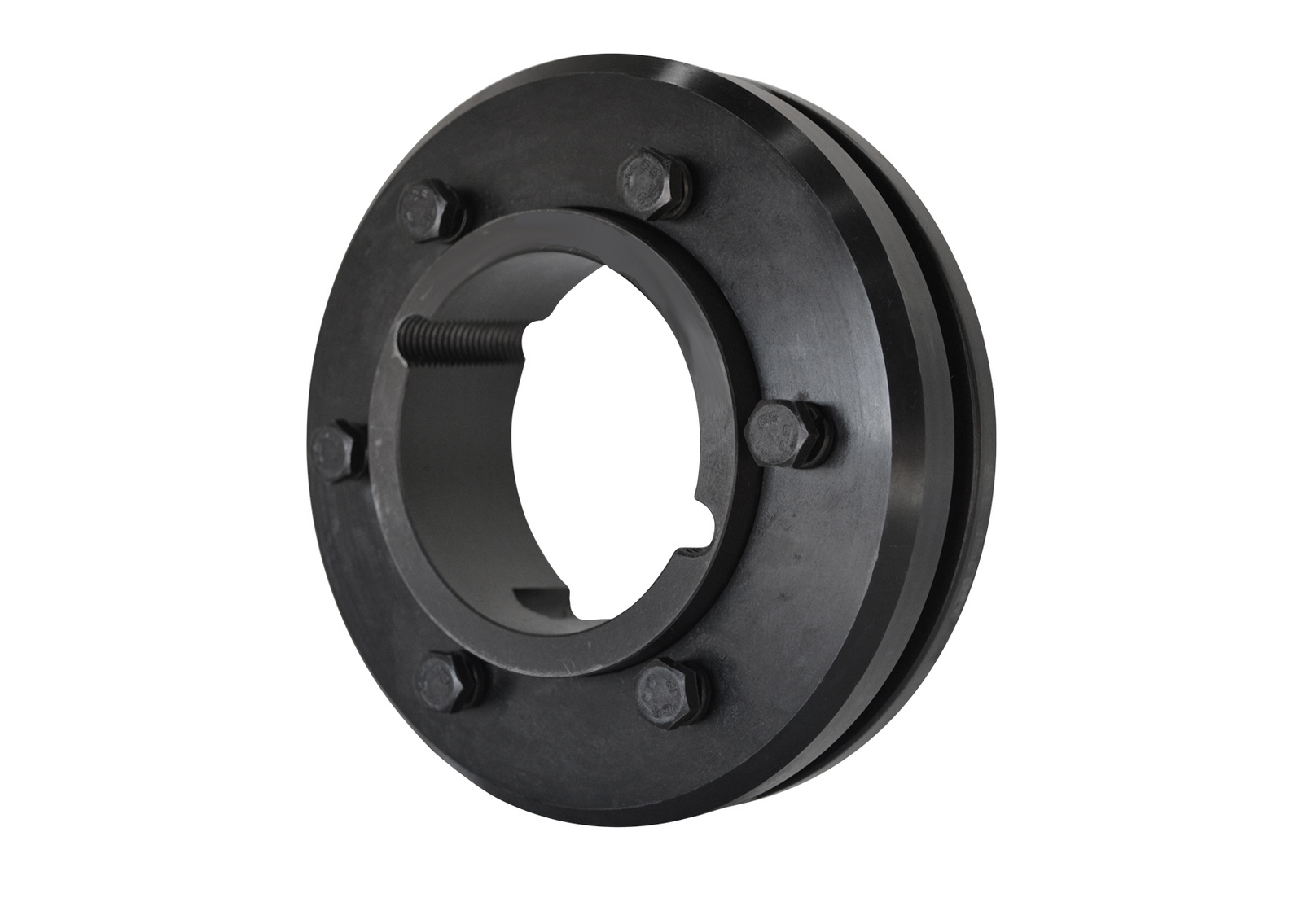

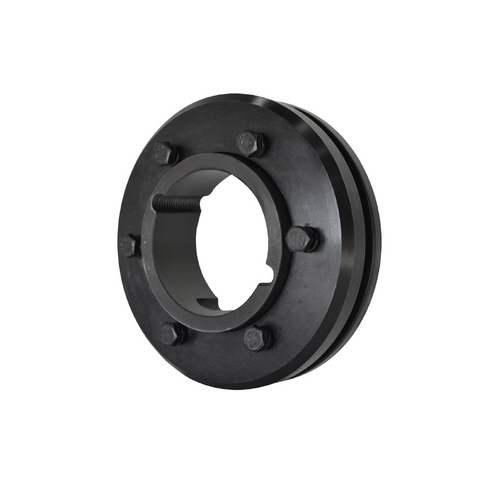

Flexible Tyre Coupling Half F200 Flange Side Taper Lock Centre

$2,605.30



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU F200F
Shipping Weight 72.0000kg
Bore Taper Lock
Compatible Bush 4535
Dimension D (mm) 223
Dimension E (mm) 20
Dimension L (mm) 118
Dimension M (mm) 27.5
Hub Type F - Bush Installed on Flange Side
Max. RPM 1300
Nominal Torque (Nm) 9325
Dimension F (mm) 118
(A) Outside Ø Tyre (mm) 562
(C) Outside Ø Hub (mm) 474
