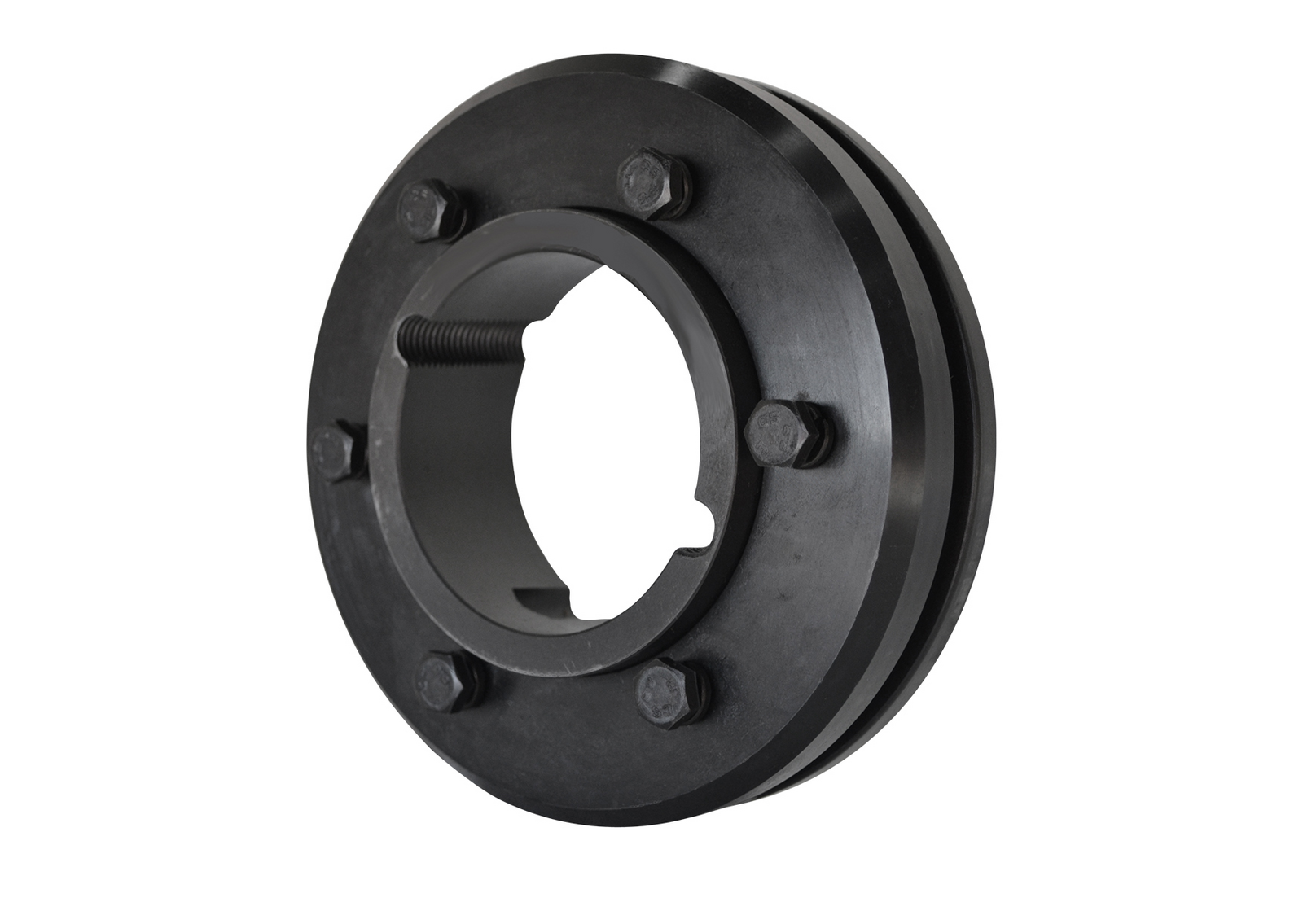

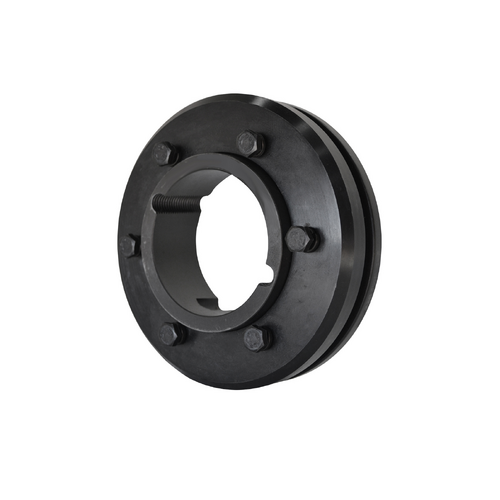

Flexible Tyre Coupling Half F120 Flange Side Taper Lock Centre

$479.77



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU F120F
Shipping Weight 16.5000kg
Bore Taper Lock
Compatible Bush 3525
Dimension D (mm) 140
Dimension E (mm) 65
Dimension L (mm) 78.5
Dimension M (mm) 14.5
Hub Type F - Bush Installed on Flange Side
Max. RPM 2050
Nominal Torque (Nm) 1300
Dimension F (mm) 67
(A) Outside Ø Tyre (mm) 314
(C) Outside Ø Hub (mm) 264
