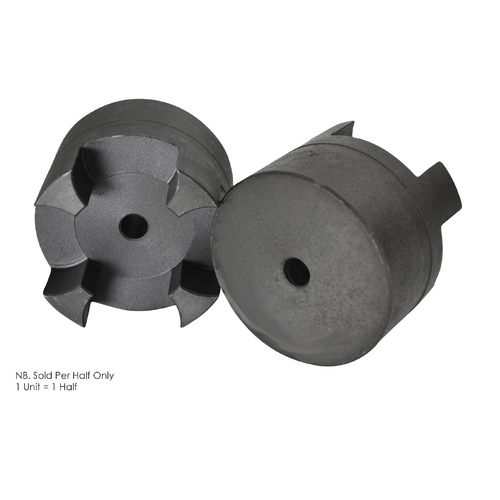

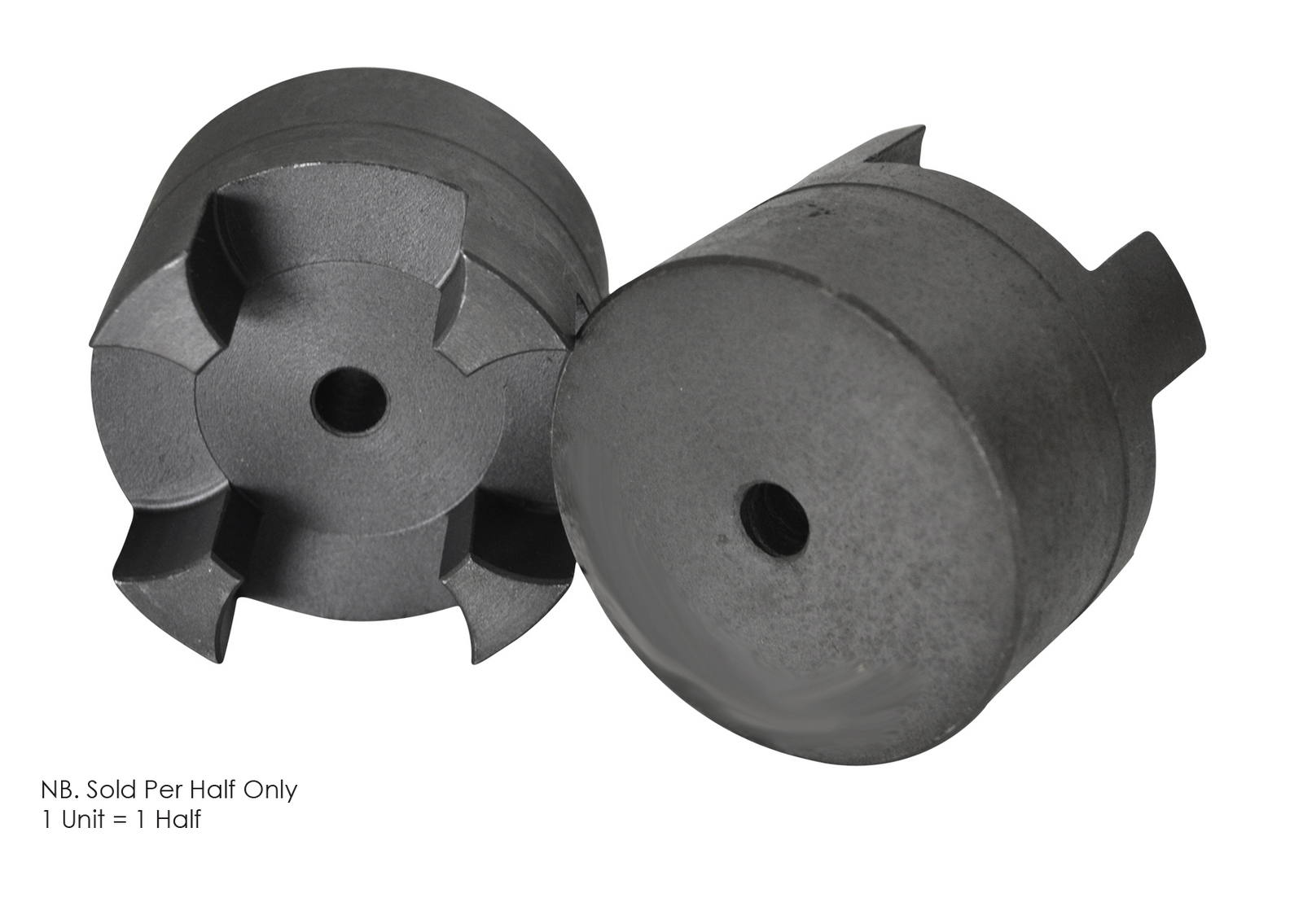

Curved Jaw Coupling Half GE65-1a Full Hub Pilot Bore Centre

$312.46



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU GE65-1a
Shipping Weight 6.6600kg
Bore PILOT BORE
(D) Outside Ø (mm) 135
Min. Bore (mm) 22
Max. Bore (mm) 65
Dimension L (mm) 182
Hub Type Type 1a (Full Hub)
Max. RPM 5600
Rated Torque - Yellow Element (Nm) 625
Rated Torque - Red Element (Nm) 940
Dimension D¹ (mm) 115
Dimension S (mm) 1.5
Dimension L¹ (mm) 105.5
Dimension L² (mm) 75
