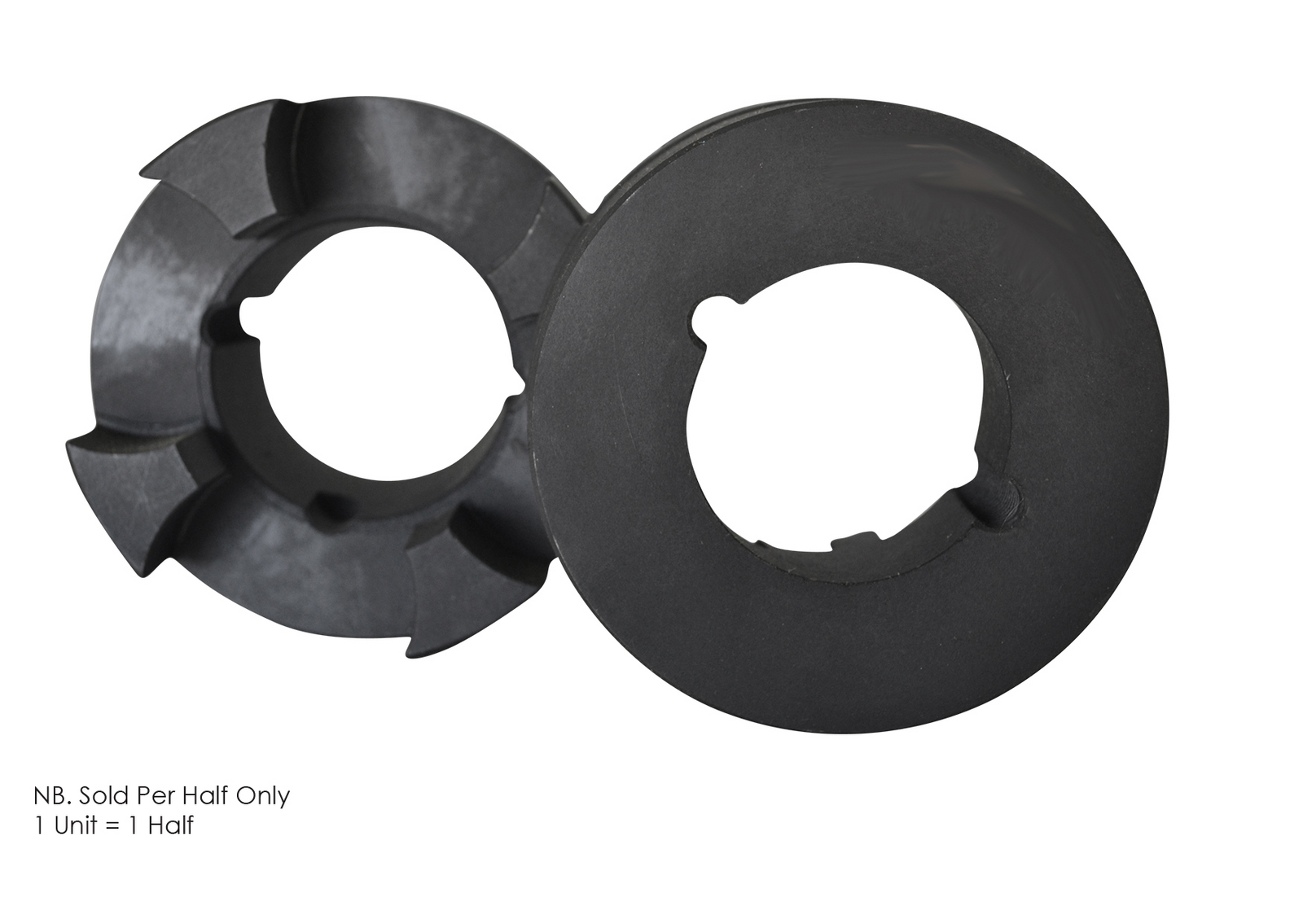

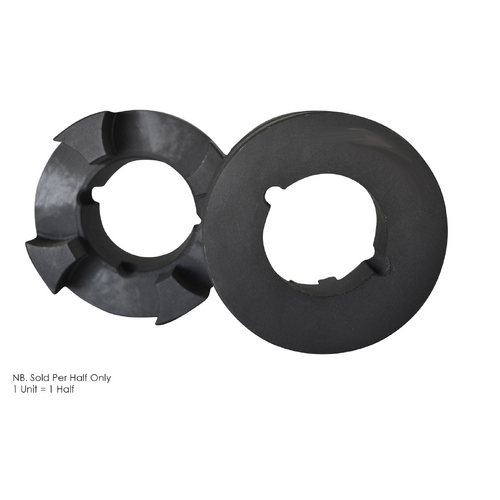

Curved Jaw Coupling Half GE48 Flange Taper Lock Centre

$135.44



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU GE48TL-F
Shipping Weight 2.0700kg
Bore Taper Lock
(D) Outside Ø (mm) 105
Compatible Bush 1615
Dimension L (mm) 104
Hub Type F - Bush Installed on Flange Side
Max. RPM 7100
Rated Torque - Yellow Element (Nm) 310
Rated Torque - Red Element (Nm) 525
Dimension D¹ (mm) 104
Dimension S (mm) 1.5
Dimension L¹ (mm) 63.5
Dimension L² (mm) 39
