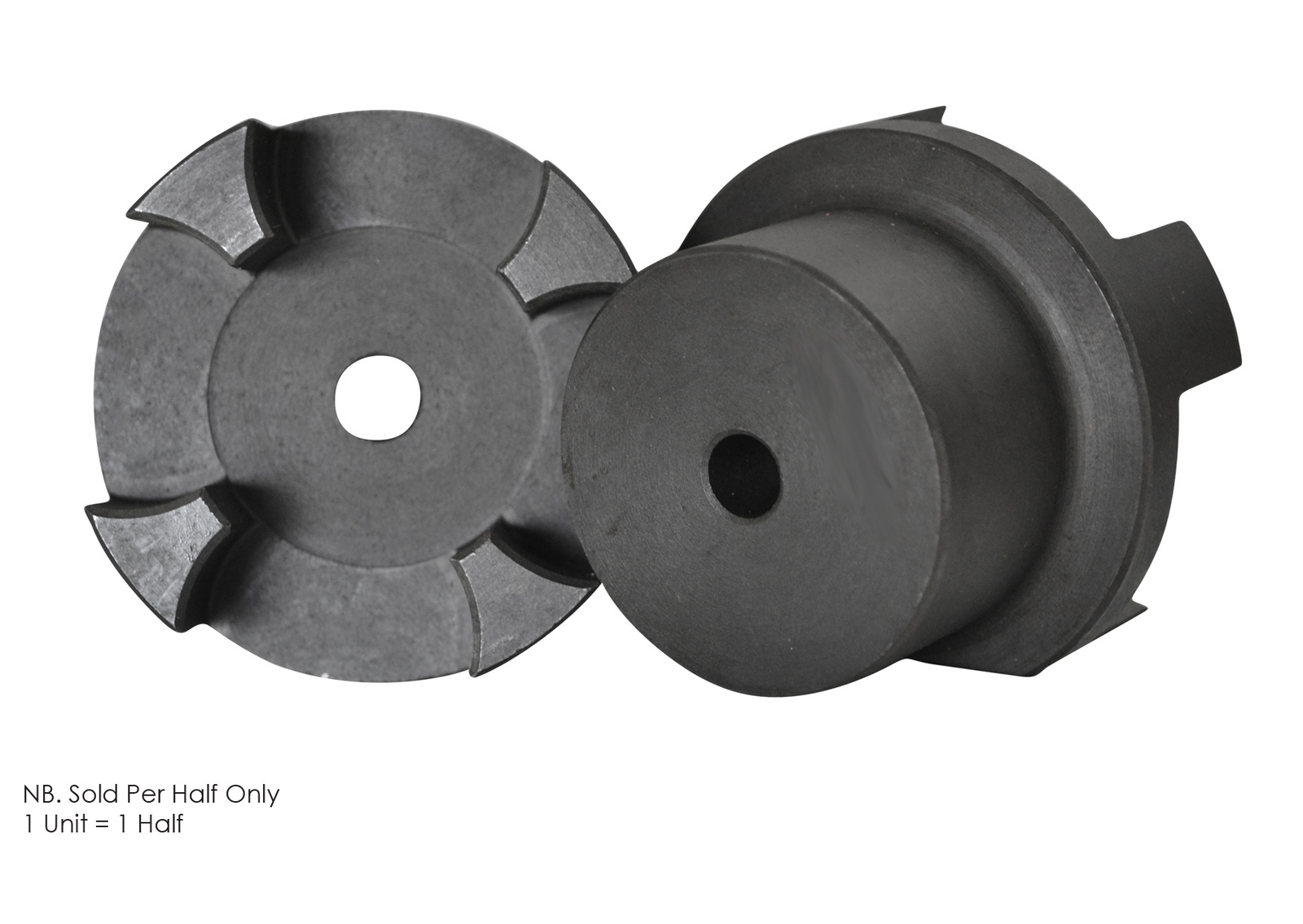

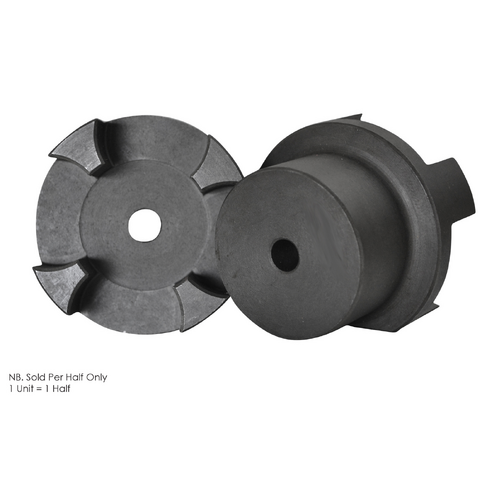

Curved Jaw Coupling Half GE42-1 Stepped Hub Pilot Bore Centre

$99.20



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU GE42-1
Shipping Weight 2.0300kg
Bore PILOT BORE
(D) Outside Ø (mm) 95
Min. Bore (mm) 14
Max. Bore (mm) 42
Dimension L (mm) 124
Hub Type Type 1 (Stepped Hub)
Max. RPM 8000
Rated Torque - Yellow Element (Nm) 265
Rated Torque - Red Element (Nm) 450
Dimension D¹ (mm) 75
Dimension S (mm) 1
Dimension L¹ (mm) 73
Dimension L² (mm) 50
