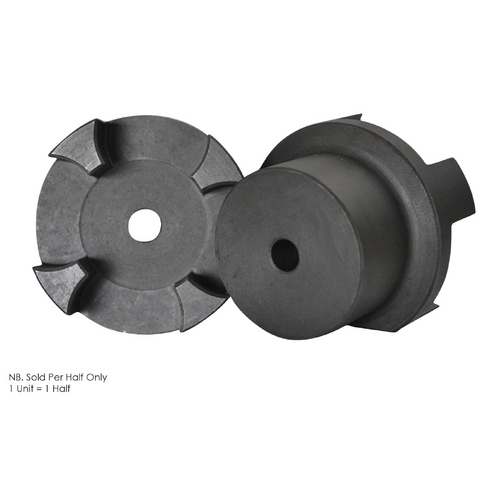

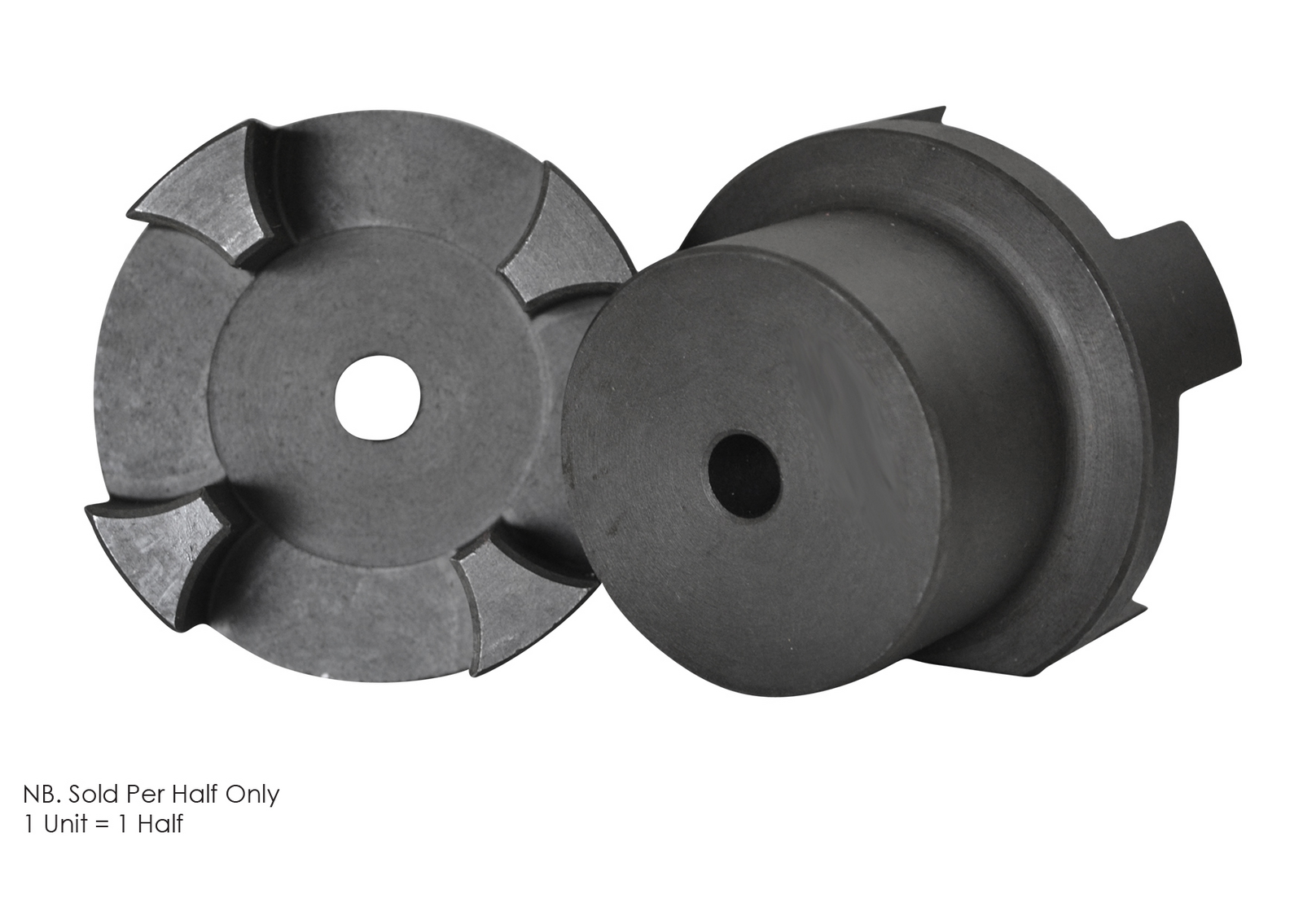

Curved Jaw Coupling Half GE28-1 Stepped Hub Pilot Bore Centre

$50.22



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU GE28-1
Shipping Weight 0.6200kg
Bore PILOT BORE
(D) Outside Ø (mm) 65
Min. Bore (mm) 10
Max. Bore (mm) 28
Dimension L (mm) 89
Hub Type Type 1 (Stepped Hub)
Max. RPM 11800
Rated Torque - Yellow Element (Nm) 95
Rated Torque - Red Element (Nm) 160
Dimension D¹ (mm) 48
Dimension S (mm) 1.5
Dimension L¹ (mm) 52.5
Dimension L² (mm) 35
