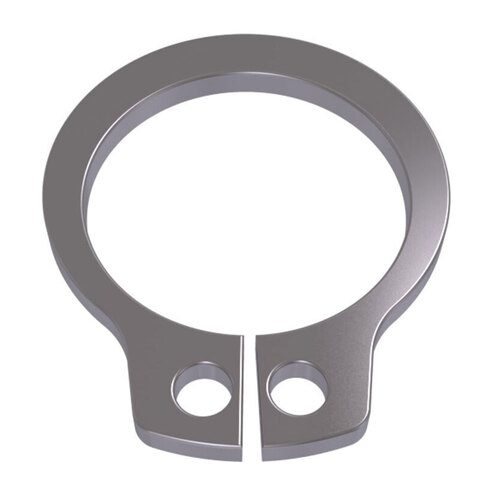

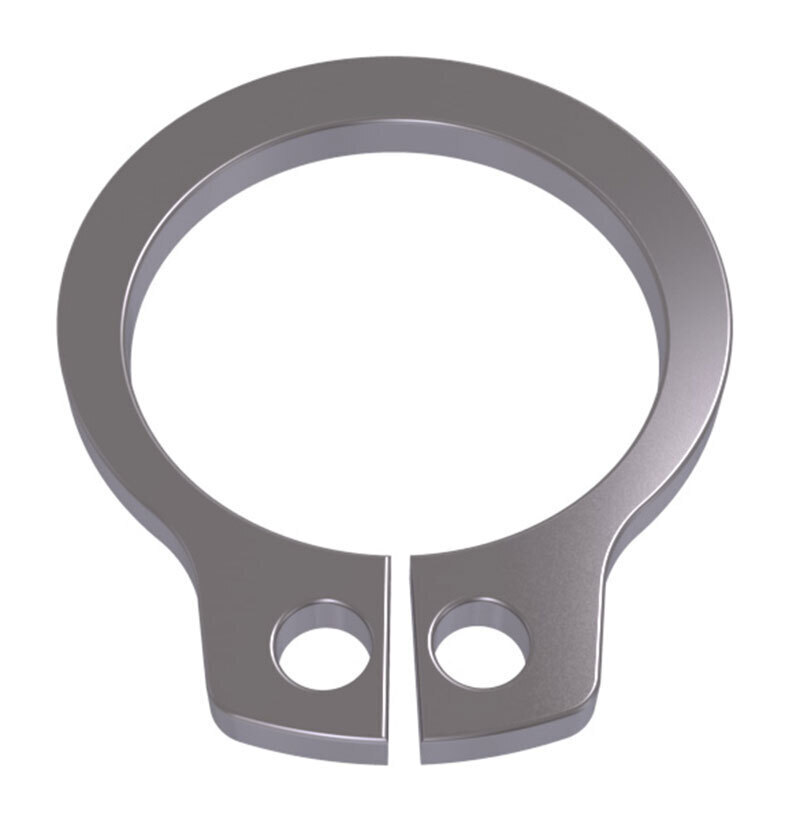

1400-80 External Circlip for 80mm Shaft to DIN 471 Spring Steel

$7.99



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
80x2.5 DIN 471 Retaining Ring for Shaft / External Circlip Spring Steel
SKU 1400-80
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 471
(t) Thickness (mm) 2.5
(S) Shaft Ø (mm) 80
(G) Slot Ø (mm) 76.5
(W) Slot Width (mm) 2.65
(D) Inside Ø Of Circlip (mm) 74.5
