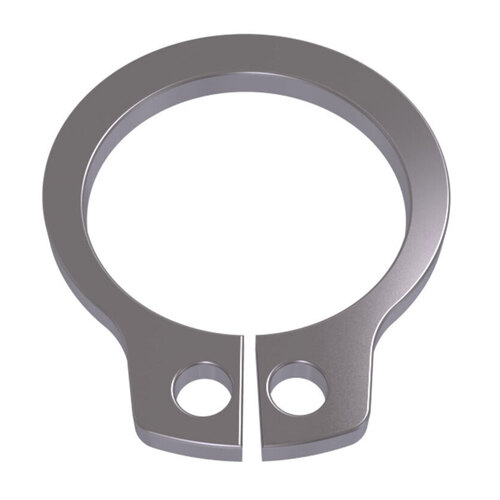

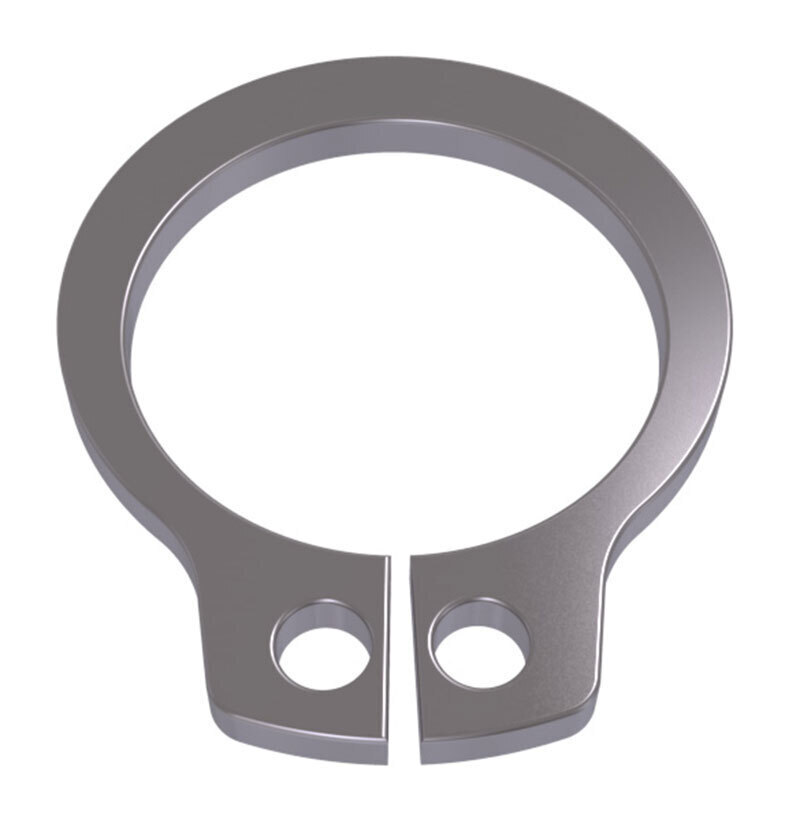

1400-10 External Circlip for 10mm Shaft to DIN 471 Spring Steel

$0.26

Ready To Ship


Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

10x1 DIN 471 Retaining Ring for Shaft / External Circlip Spring Steel

SKU 1400-10
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 471
(t) Thickness (mm) 1
(S) Shaft Ø (mm) 10
(G) Slot Ø (mm) 9.6
(W) Slot Width (mm) 1.1
(D) Inside Ø Of Circlip (mm) 9.3
