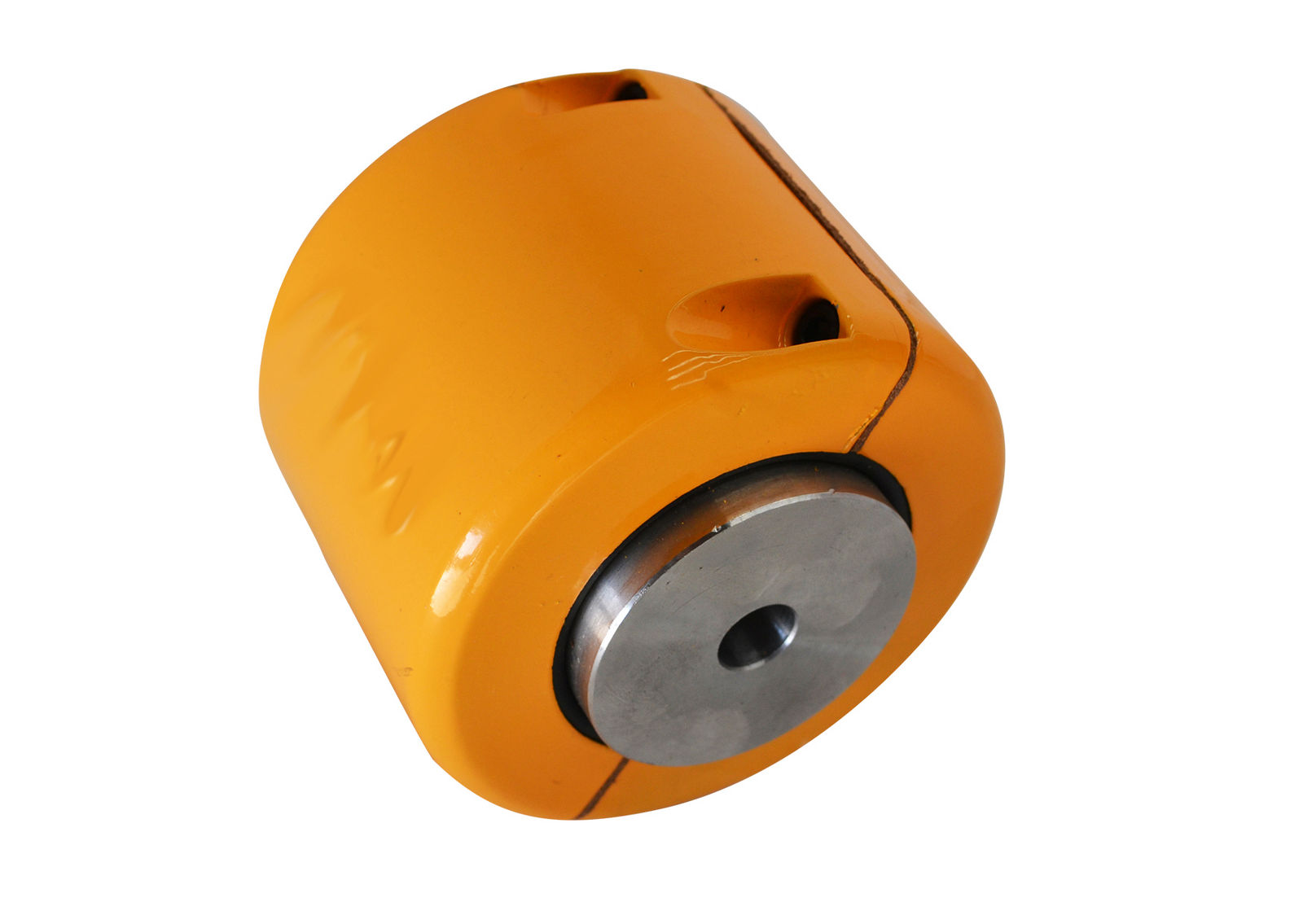

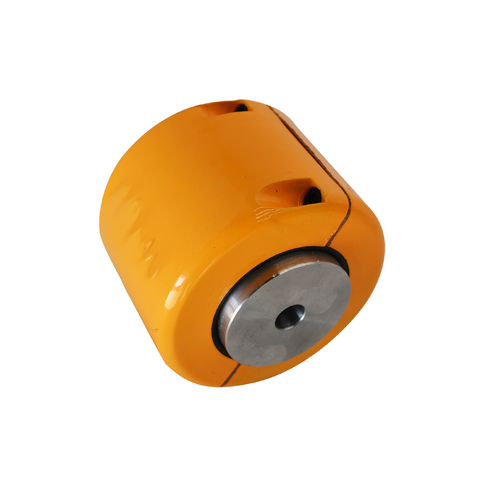

Chain Coupling 8018 - Pilot Bore Complete with Cover

$570.38



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU CC8018
Shipping Weight 13.2000kg
Bore PILOT BORE
Min. Bore (mm) 32
Max. Bore (mm) 80
Max. RPM (Without Cover) 500
Max. RPM (With Cover) 2000
(A) Outside Ø (mm) 169
Dimension B (mm) 141.2
Dimension C (mm) 115
Dimension D (mm) 63
Dimension E (mm) 15.2
