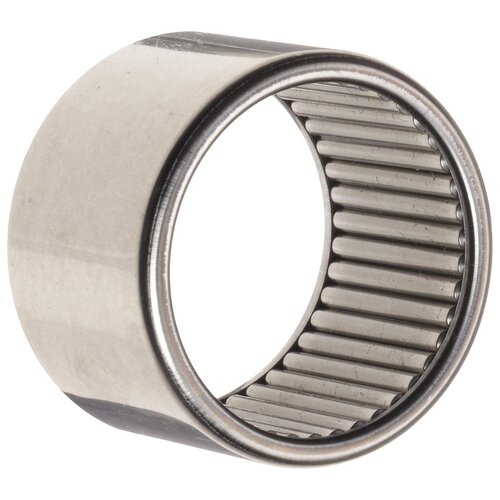

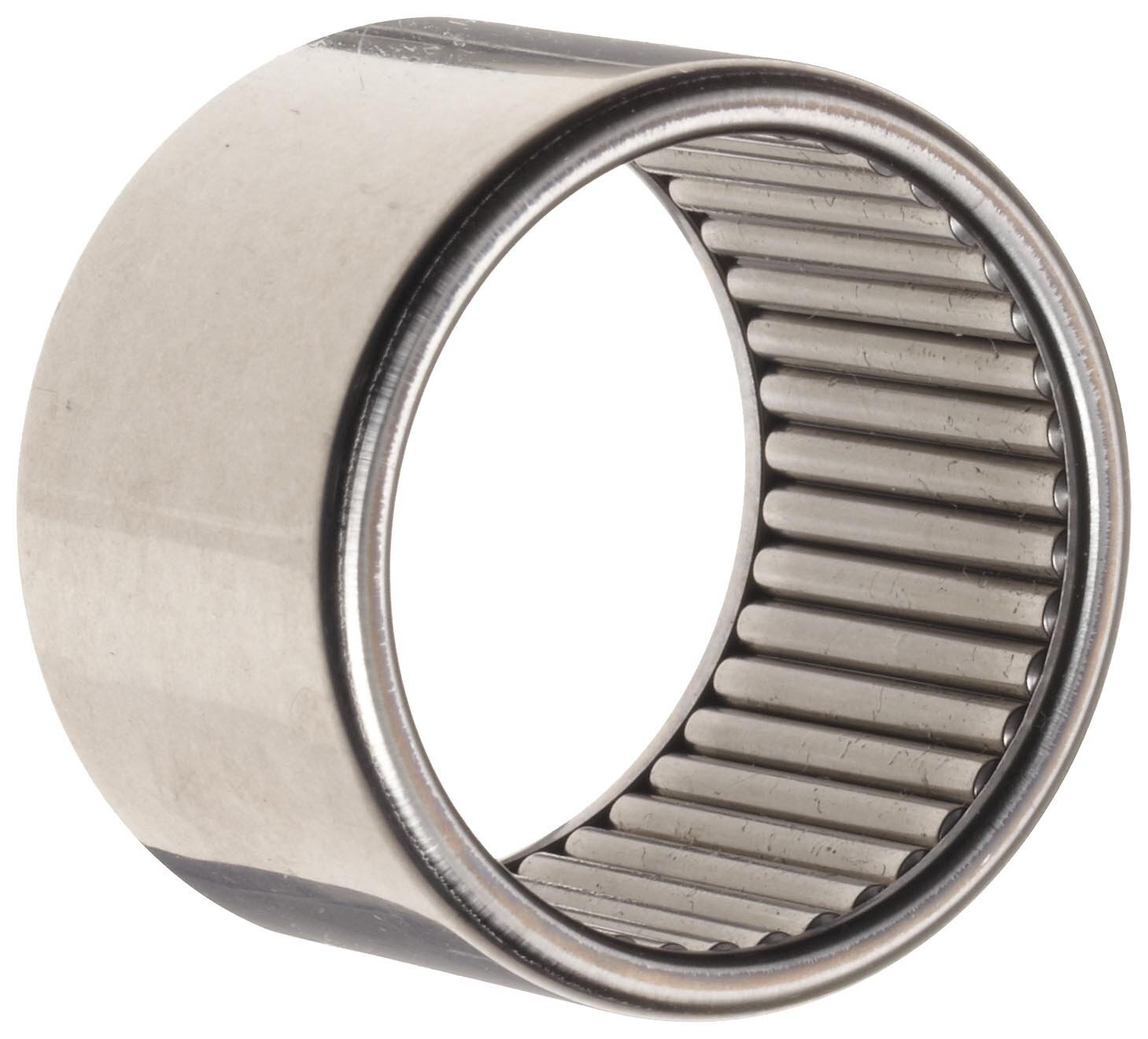

B-2420 KOYO Shell Type Full Complement Needle Roller Bearing (1-1/2x1-7/8x1-1/4)

$50.41



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Full complement needle roller bearings are a type of roller bearing that contains a large number of needle rollers, which are long and thin cylindrical rollers. Unlike other types of bearings, they do not have a cage to separate the rollers. This design allows for a higher load-carrying capacity because more rollers can be fitted within the same space. However, it also means there is more friction due to the increased contact between the rollers. These bearings are typically used in applications where high load capacities and compact designs are essential, but where speeds are relatively low.
SKU B-2420-KOYO
Brand KOYO
Grade Premium
Seal Open
Ring Material Rolling Bearing Steel
Rolling Element Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +120°C
Min. Operating Temperature (deg. C) ­40°C
Norm. DIN 618-1
Inner Ring Included No
Usable Inner Ring IR-1920
(fw) Inside Ø 1-1/2"
(D) Outside Ø 1-7/8"
(C) Width 1-1/4"
