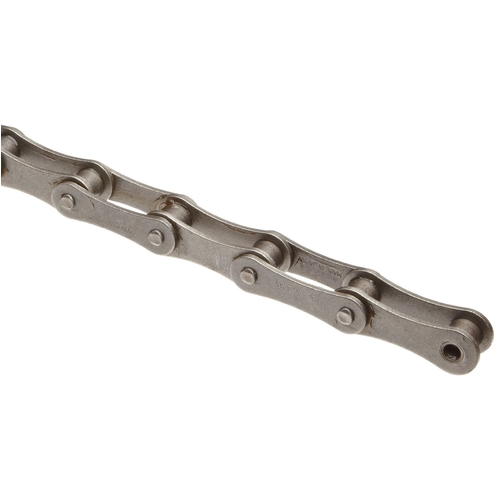

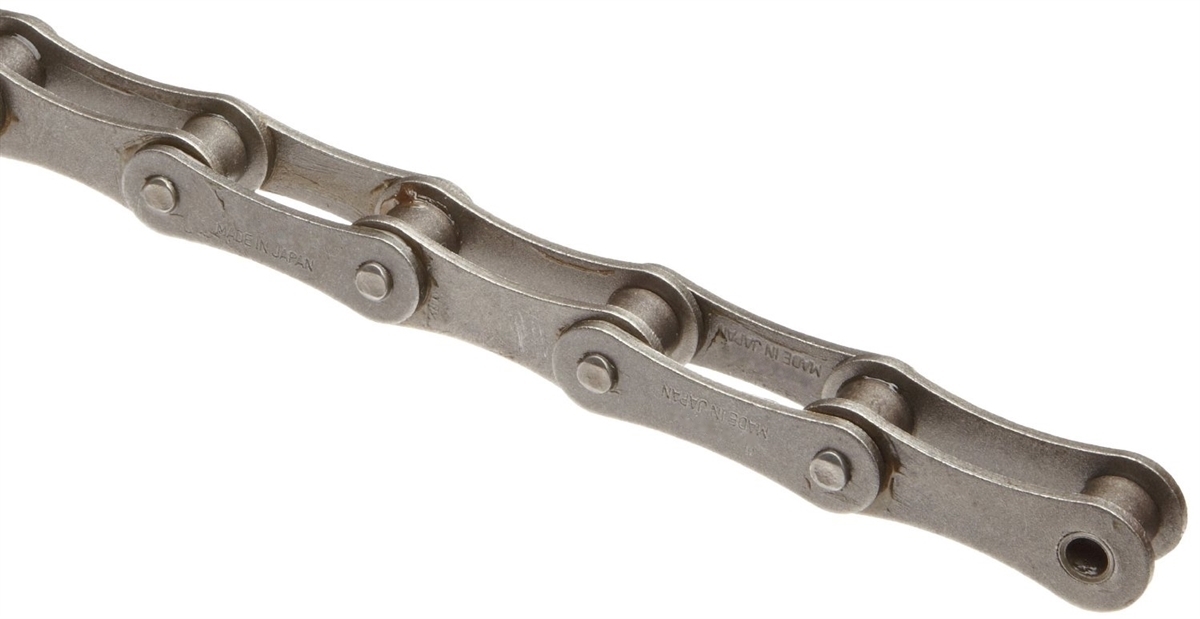

A2050 KCM Premium Conveyor Roller Chain 1-1/4 Inch Pitch Double Pitch - Price per 10' Roll

$94.27Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU A2050-KCM
Brand KCM
Shipping Weight 0.1970kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 9.53
(D) Roller Diameter (mm) 10.16
(d) Pin Diameter (mm) 5.09
(A) Pin (mm) 10.15
(B) Pin (mm) 11.6
(A+A) L¹ (mm) 20.3
(A+B) L¹ (mm) 21.75
(L) Offset (mm) 23
(T) Link Plate Thickness (mm) 2
(H) Link Plate Height (mm) 14.6
