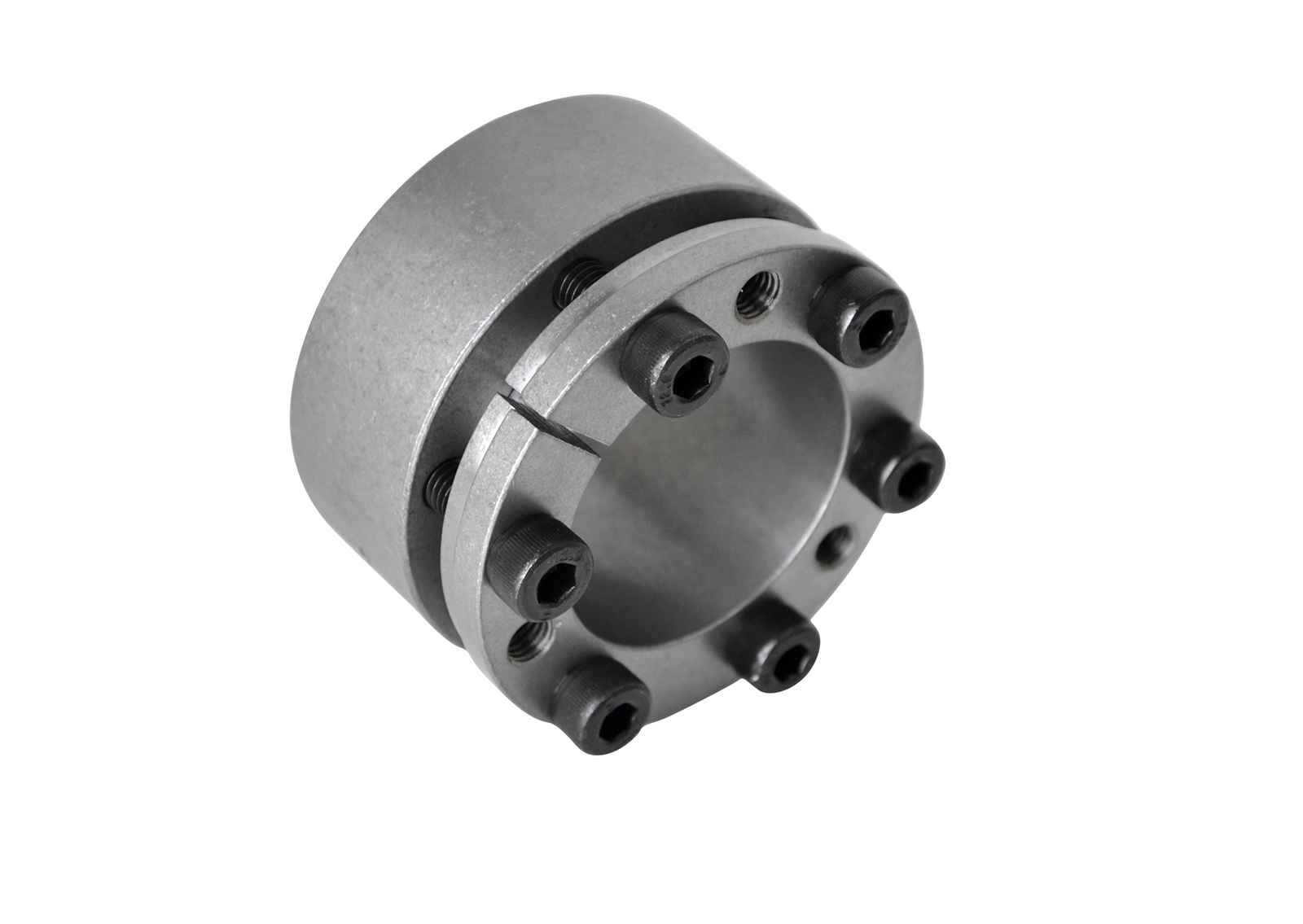

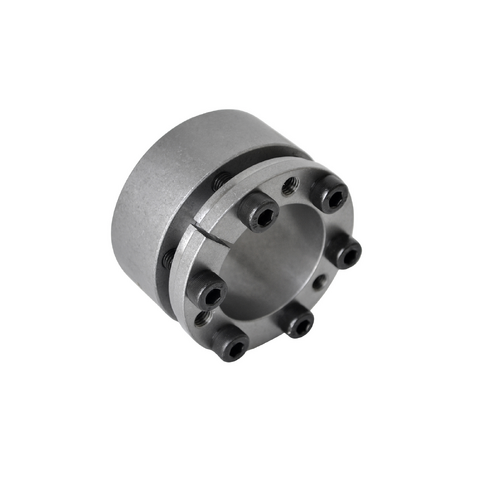

90X130mm Type 04 Locking Assembly Self Centering

$187.44



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU REACH04-90
(d) Inside Ø (mm) 90
(D) Outside Ø (mm) 130
Dimension L¹ (mm) 40
Dimension L² (mm) 46
(L) Assembled Length (mm) 72
Locking Unit Type Type 04
No. Of Clamping Screws 10
Screw Size M10X35
Screw Tightening Torque (Nm) 83
Dimension L³ (mm) 62
