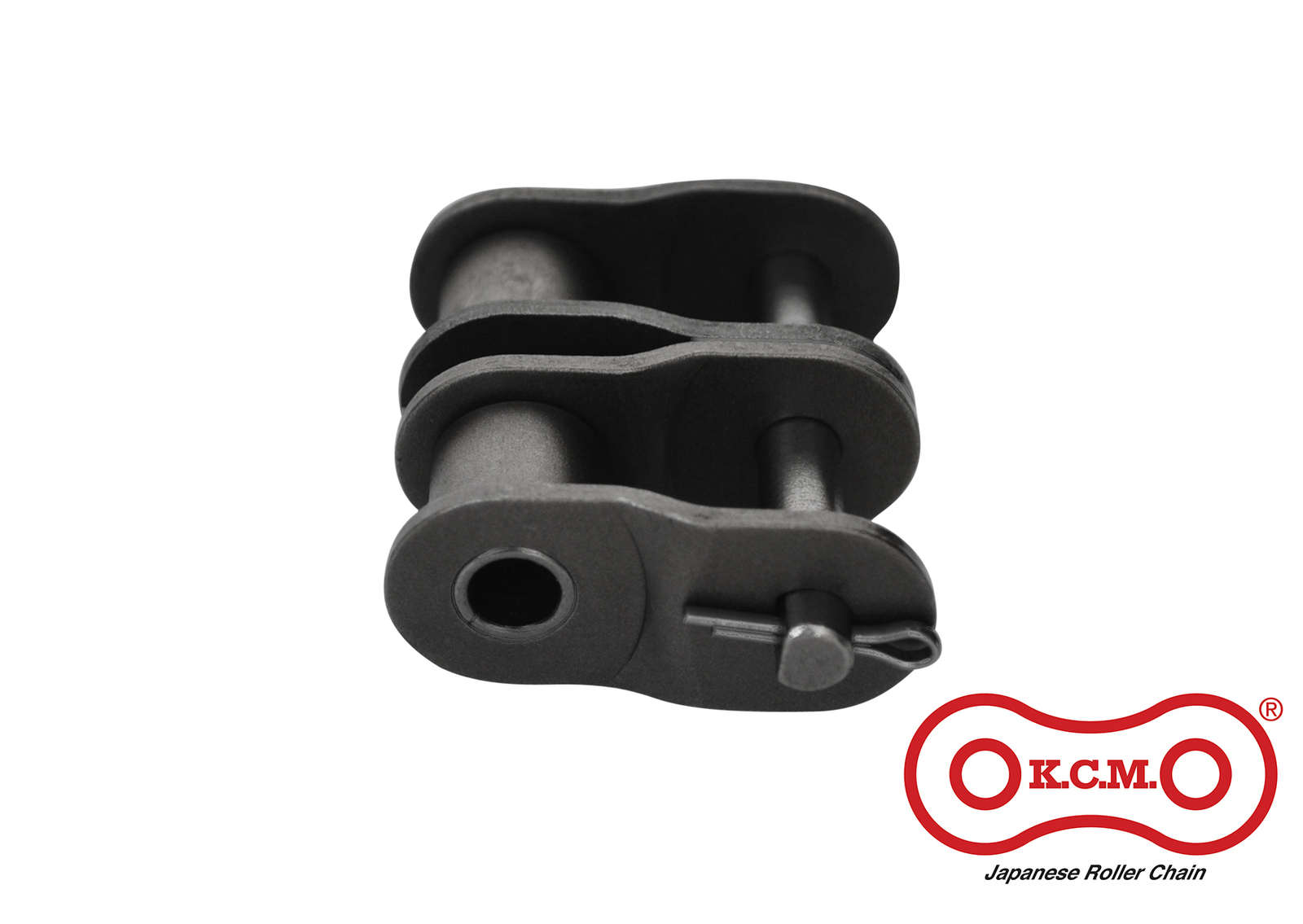

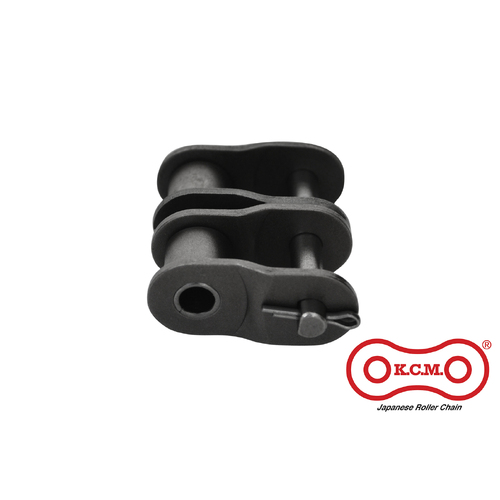

80H-2OL KCM Premium Offset / Half Link 1 Inch Pitch Heavy ASA Duplex

$41.40



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 80H-2OL-KCM
Brand KCM
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 25.4 (1")
(W) Width Between Inner Pitch (mm) 15.88
(D) Roller Diameter (mm) 15.88
(d) Pin Diameter (mm) 7.94
(A) Pin (mm) 34
(B) Pin (mm) 37.1
(A+A) L¹ (mm) 68
(A+B) L¹ (mm) 71.1
(T) Link Plate Thickness (mm) 4
(H) Link Plate Height (mm) 23
