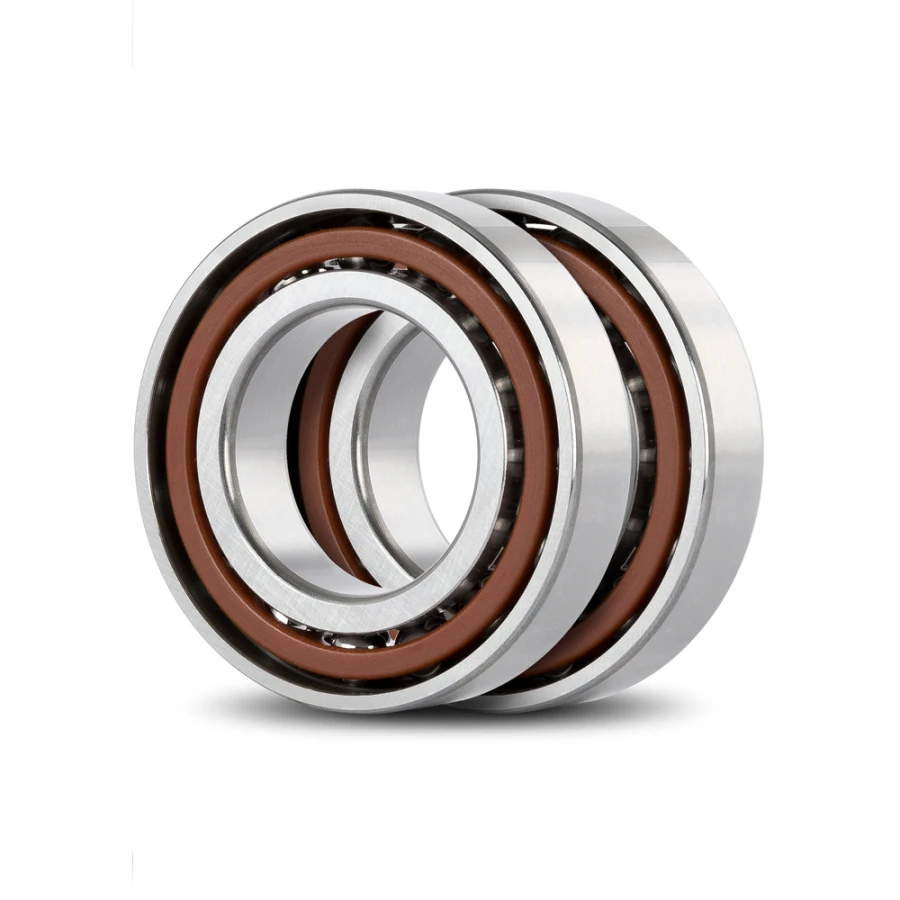

7203CYDU/GLP4 NACHI Angular Spindle Ball Bearing Precision (17x40x12) Duplex Set

$293.70



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 7203CYDU-GLP4-NACHI
Brand Nachi
Shipping Weight 0.0690kg
Seal Open
Norm. DIN 628-1
Min. Operating Temperature (deg. C) -­40°C
Max. Operating Temperature (deg. C) +150°C
Lifetime Lubricated No
Type Of Lubrication Dry
Cage Material Phenolic Resin
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Premium
Speed Rating V (Normal)
Precision Class P4 (Greater Precision than P5)

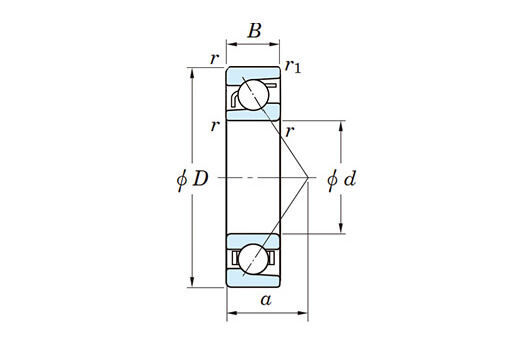

(B) Width (mm) 12
(D) Outside Ø (mm) 40
(d) Inside Ø (mm) 17
Modification Suffix C - Contact Angle 15°
Bore Cylindrical
