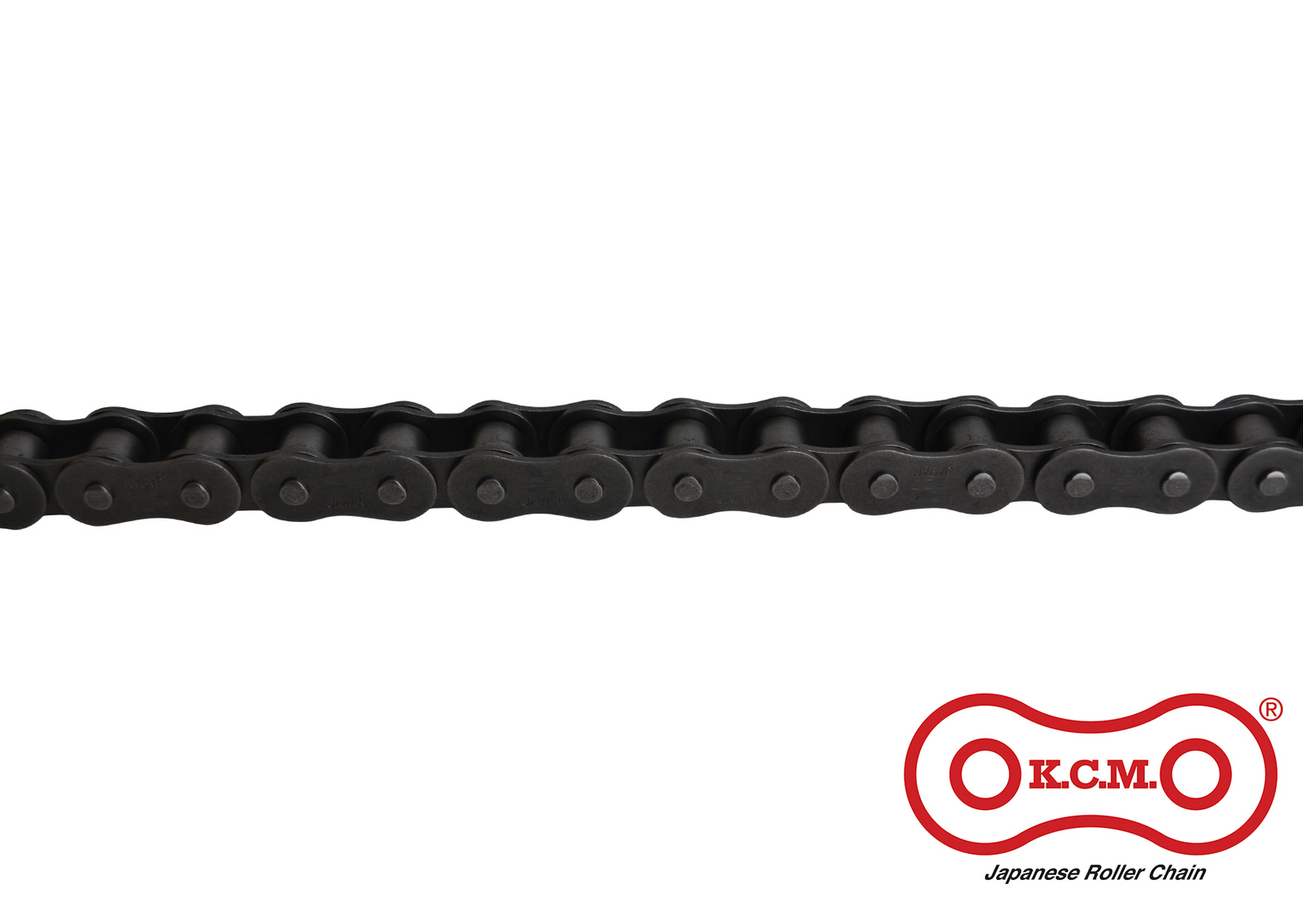

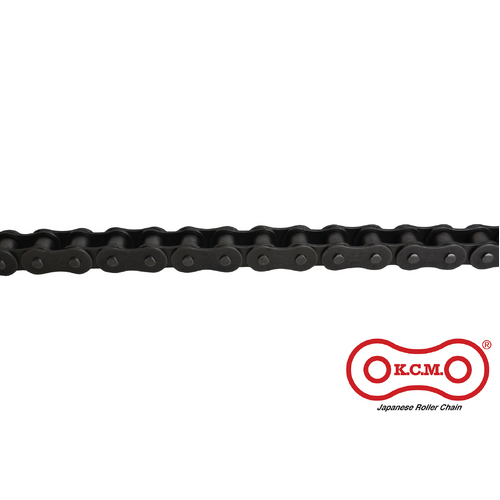

60H-1 KCM Premium Roller Chain 3/4 Inch Pitch Heavy ASA Simplex - Price per 10' Roll

$221.87Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 60H-1-KCM
Brand KCM
Shipping Weight 0.5364kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 19.05 (3/4")
(W) Width Between Inner Pitch (mm) 12.7
(D) Roller Diameter (mm) 11.91
(d) Pin Diameter (mm) 5.96
(A) Pin (mm) 14.35
(B) Pin (mm) 15.75
(A+A) L¹ (mm) 28.7
(A+B) L¹ (mm) 30
(T) Link Plate Thickness (mm) 3.2
(H) Link Plate Height (mm) 17.5
