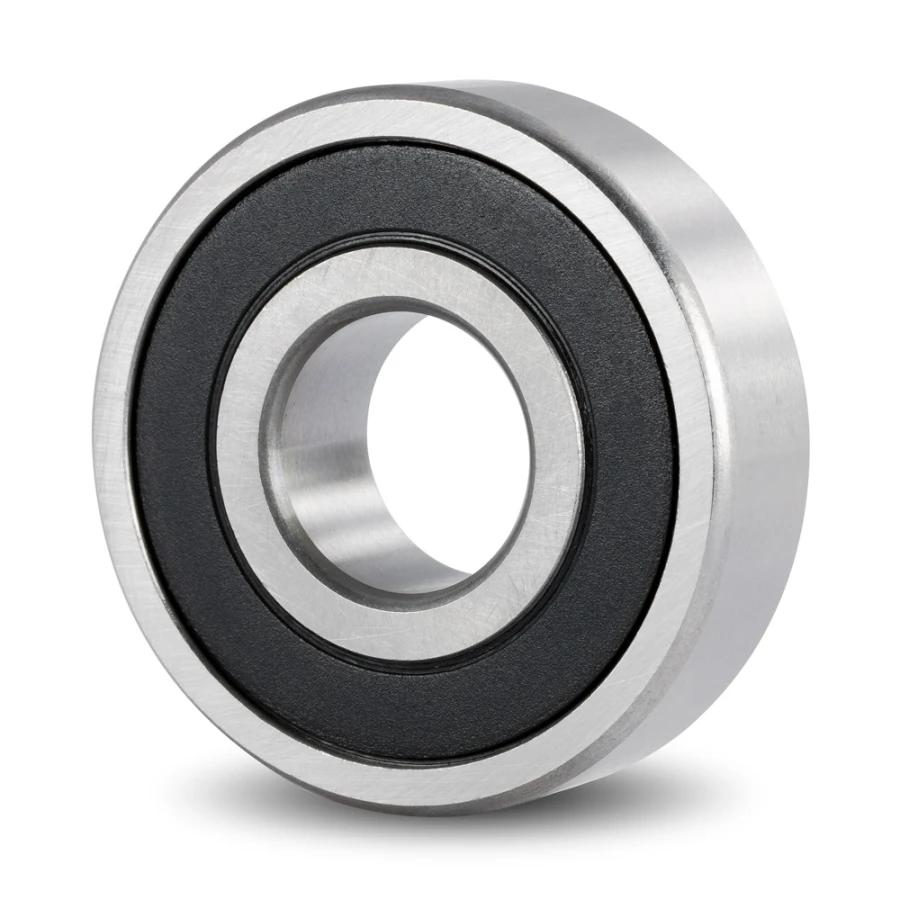

609-2RS Economy Deep Groove Ball Bearing Rubber Seals (9x24x7)

$2.54

Ready To Ship


Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
Single row deep groove ball bearings are the most common type of rolling bearings and their use is widespread across many applications. The raceway grooves on both the inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition to radial loads, axial loads can be imposed in either direction. Because of their low torque, they are highly suitable for applications where high speeds and low power loss are required.
SKU 609-2RS-ECO
Brand Craft
Shipping Weight 0.0140kg
Seal 2RS - Rubber Seals on both sides
Norm. DIN 625-1
Min. Operating Temperature (deg. C) -­20°C
Max. Operating Temperature (deg. C) +120°C
Lifetime Lubricated Yes
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Grade Economy
Speed Rating V (Normal)
Precision Class P0 (Normal Precision)

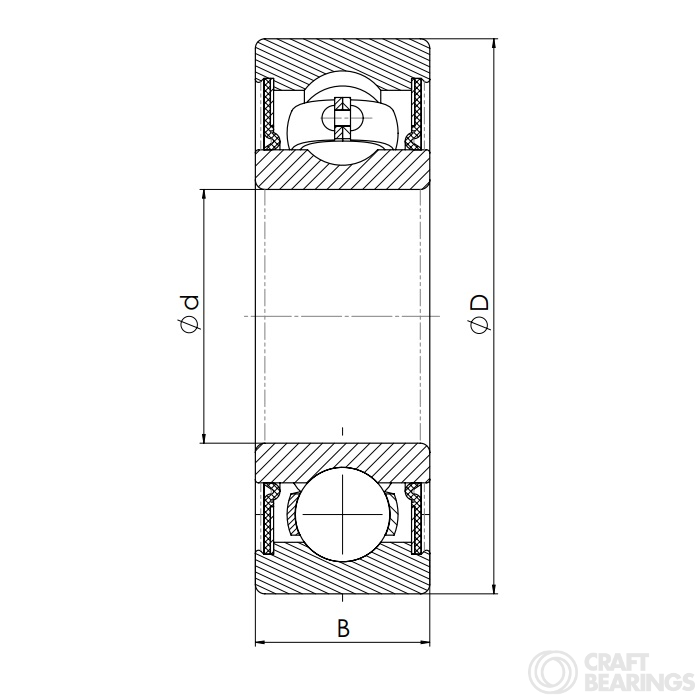

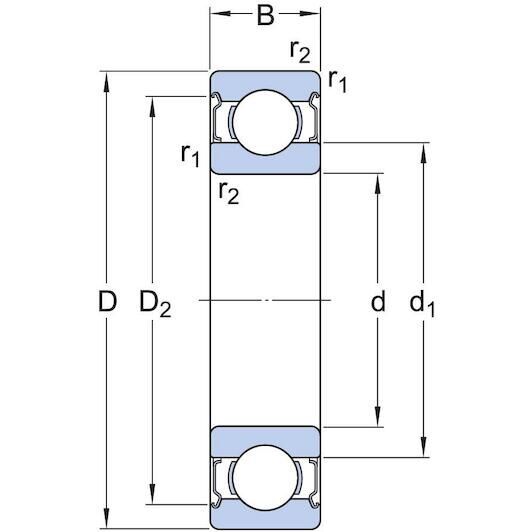

(B) Width (mm) 7
(D) Outside Ø (mm) 24
(d) Inside Ø (mm) 9
Radial Internal Clearance CN (Normal)
Bore Cylindrical
