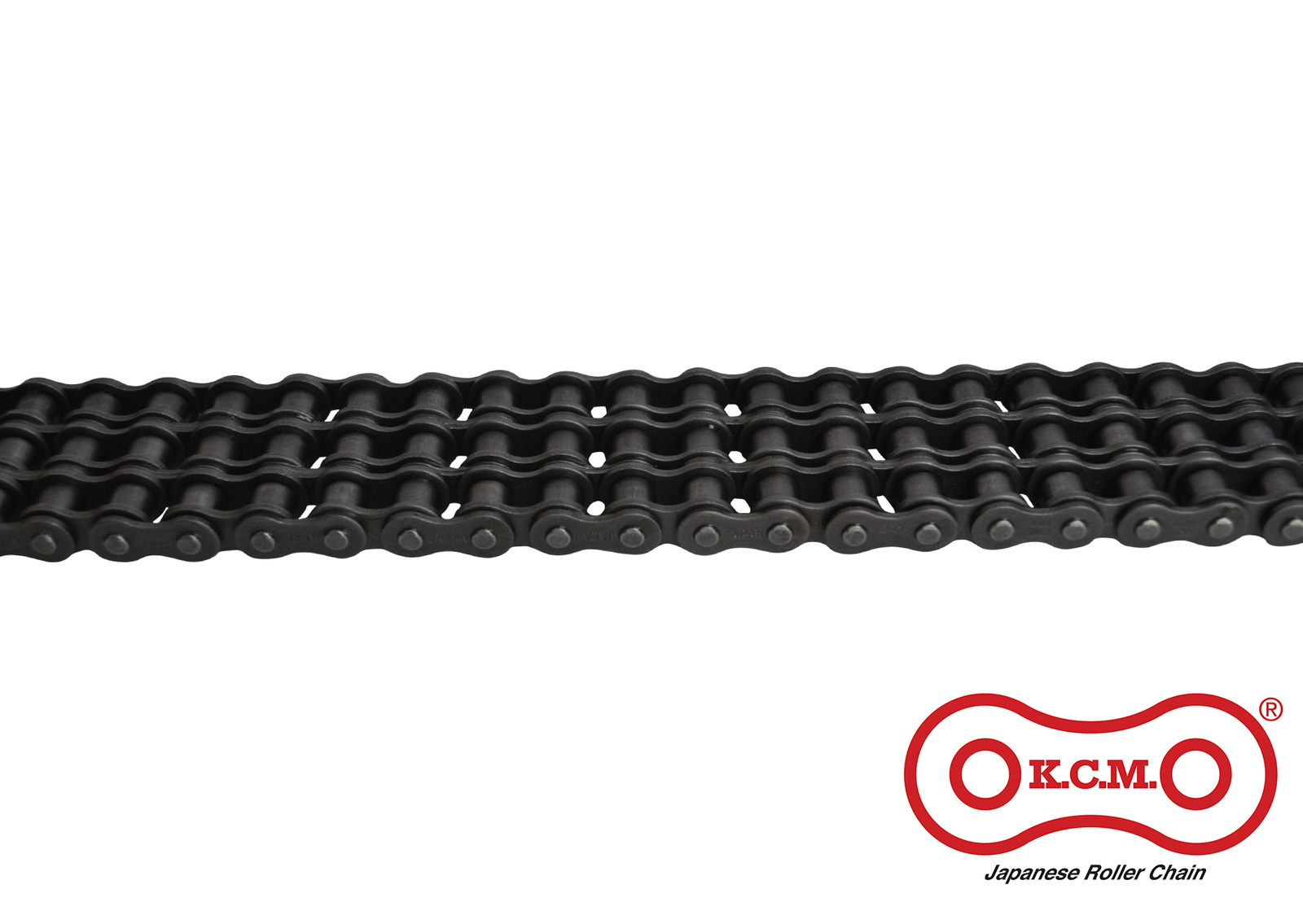

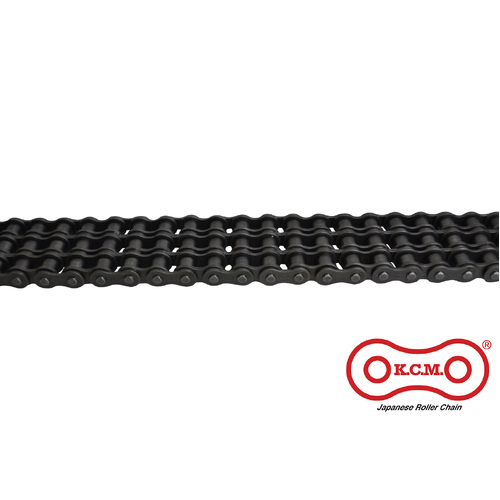

50-3 KCM Premium Roller Chain 5/8 Inch Pitch ASA Triplex - Price per 10' Roll

$371.47Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 50-3-KCM
Brand KCM
Shipping Weight 0.9061kg
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 15.875 (5/8")
(W) Width Between Inner Pitch (mm) 9.53
(D) Roller Diameter (mm) 10.16
(d) Pin Diameter (mm) 5.09
(A) Pin (mm) 28.25
(B) Pin (mm) 29.7
(A+A) L¹ (mm) 56.5
(A+B) L¹ (mm) 57.95
(L) Offset (mm) 59.2
(T) Link Plate Thickness (mm) 2
(H) Link Plate Height (mm) 14.6
