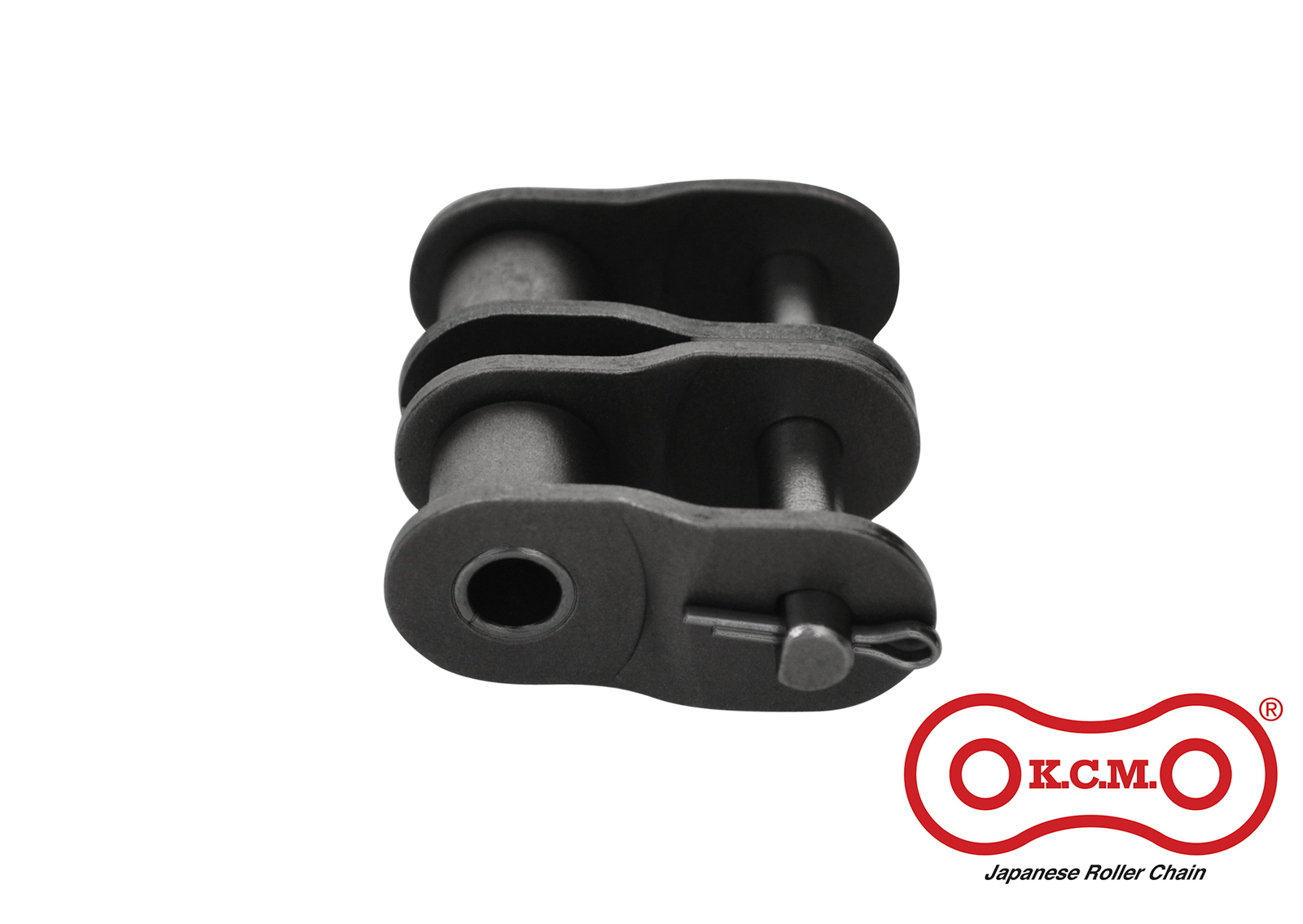

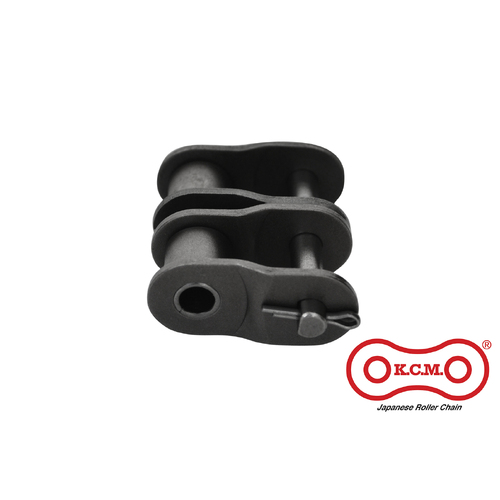

50-2OL KCM Premium Offset / Half Link 5/8 Inch Pitch ASA Duplex

$13.98



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 50-2OL-KCM
Brand KCM
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 15.875 (5/8")
(W) Width Between Inner Pitch (mm) 9.53
(D) Roller Diameter (mm) 10.16
(d) Pin Diameter (mm) 5.09
(A) Pin (mm) 19.2
(B) Pin (mm) 20.66
(A+A) L¹ (mm) 38.4
(A+B) L¹ (mm) 39.86
(L) Offset (mm) 41.1
(T) Link Plate Thickness (mm) 2
(H) Link Plate Height (mm) 14.6
