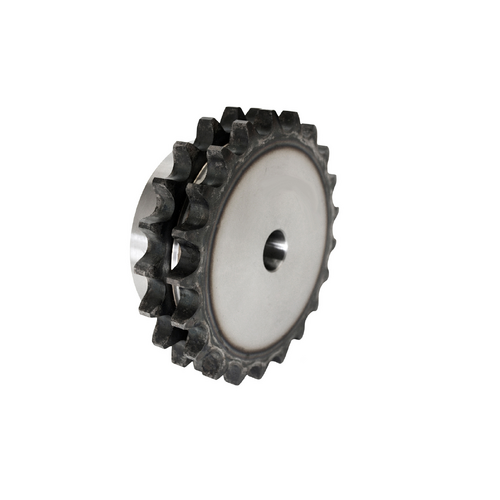

48 Tooth BS Sprocket 08B 1/2 Inch Pitch Duplex Pilot Bore Centre

$120.01



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 08B-2-48PB
Shipping Weight 2.8000kg
Bore PILOT BORE
(P) Pitch (mm) 12.7 (1/2")
Sprocket Material Steel
No. Of Teeth 48
No. Of Rows 2
(B¹) Tooth Width (mm) 7.2
(de) Outside Ø (mm) 200.7
(dp) Pitch Ø (mm) 194.2
(dm) Hub Ø (mm) 110
(A) Sprocket Width (mm) 45
(D¹) Bore Size (mm) 20
(B²) Tooth Width (mm) 21
