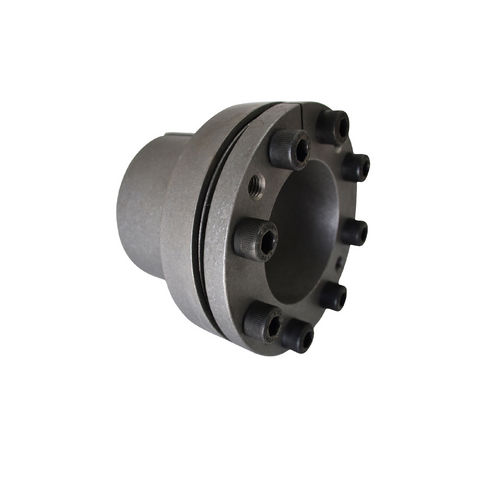

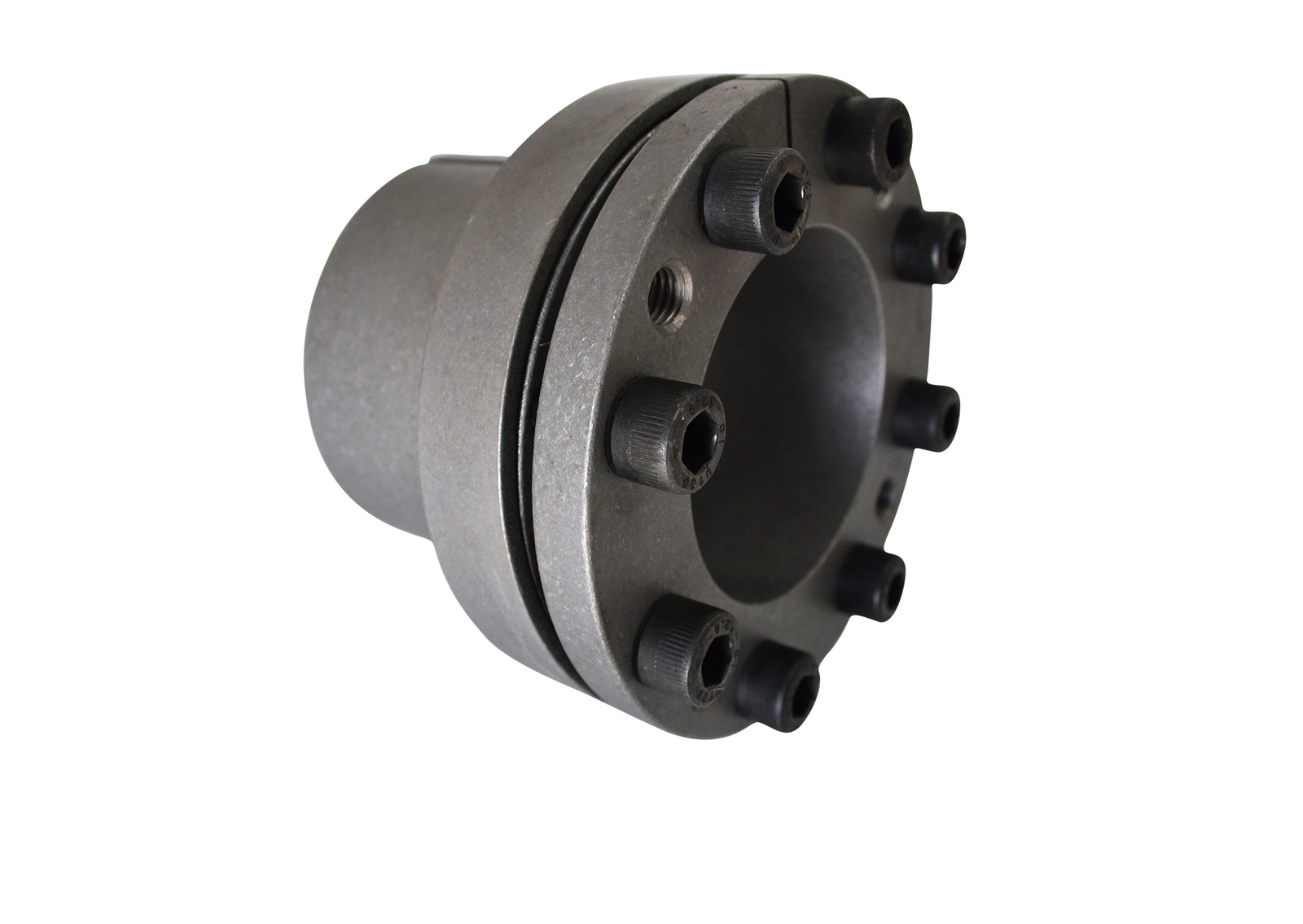

42X55mm Type 02 Locking Assembly Flanged Self Centering

$127.63



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU REACH02-42
(d) Inside Ø (mm) 42
(D) Outside Ø (mm) 55
Dimension D¹ (mm) 71
Dimension L¹ (mm) 32
Dimension L² (mm) 45
(L) Assembled Length (mm) 58
Locking Unit Type Type 02
No. Of Clamping Screws 9
Screw Size M4X18
Screw Tightening Torque (Nm) 17
Dimension L³ (mm) 52
Dimension D² (mm) 77
