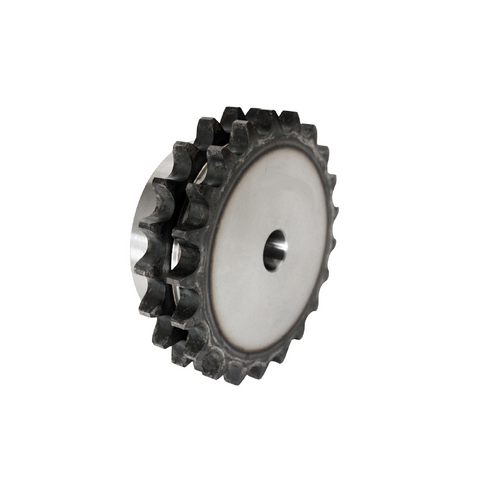

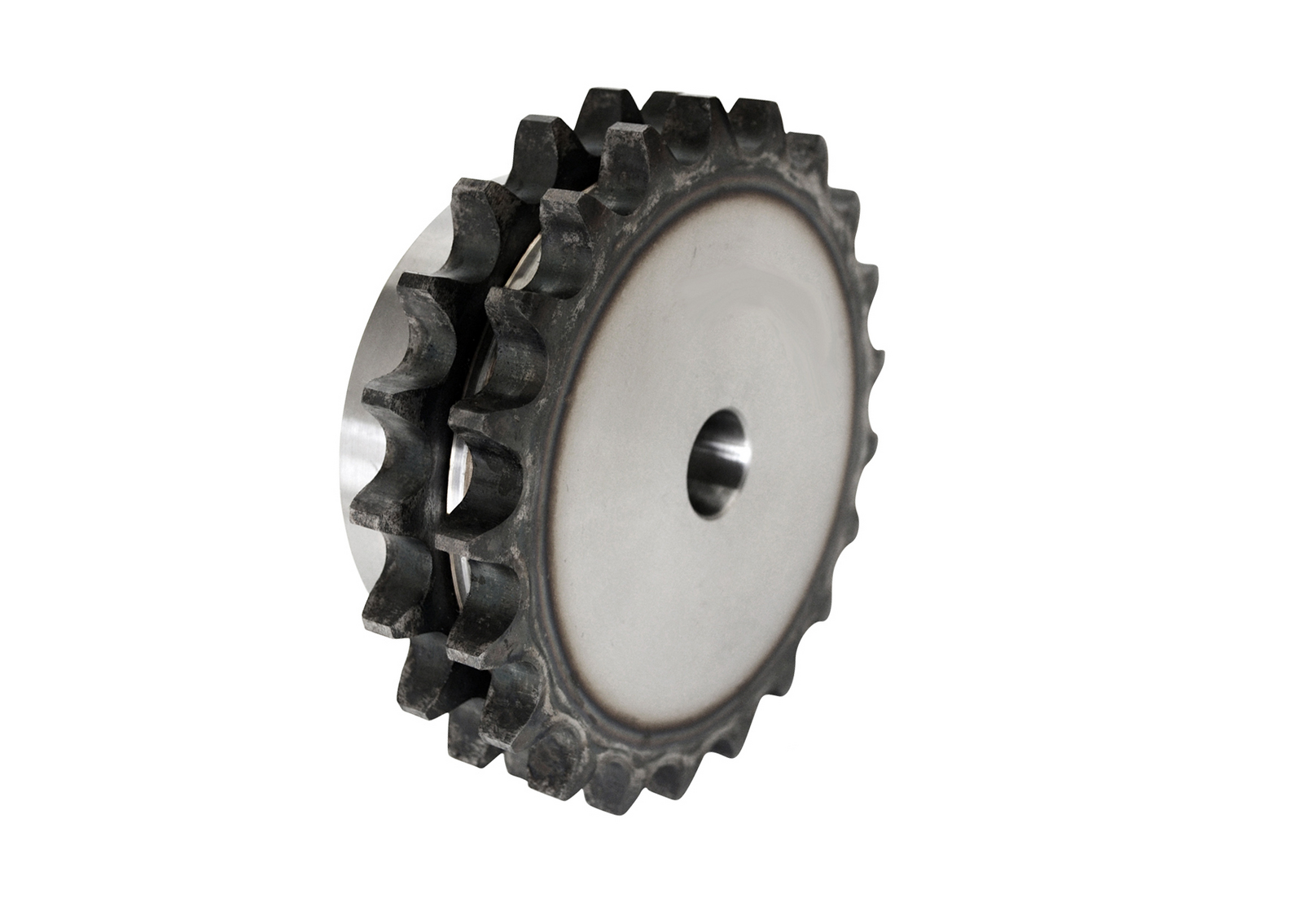

39 Tooth BS Sprocket 08B 1/2 Inch Pitch Duplex Pilot Bore Centre

$81.82



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 08B-2-39PB
Shipping Weight 2.2800kg
Bore PILOT BORE
(P) Pitch (mm) 12.7 (1/2")
Sprocket Material Steel
No. Of Teeth 39
No. Of Rows 2
(B¹) Tooth Width (mm) 7.2
(de) Outside Ø (mm) 162.7
(dp) Pitch Ø (mm) 157.8
(dm) Hub Ø (mm) 100
(A) Sprocket Width (mm) 40
(D¹) Bore Size (mm) 20
(B²) Tooth Width (mm) 21
