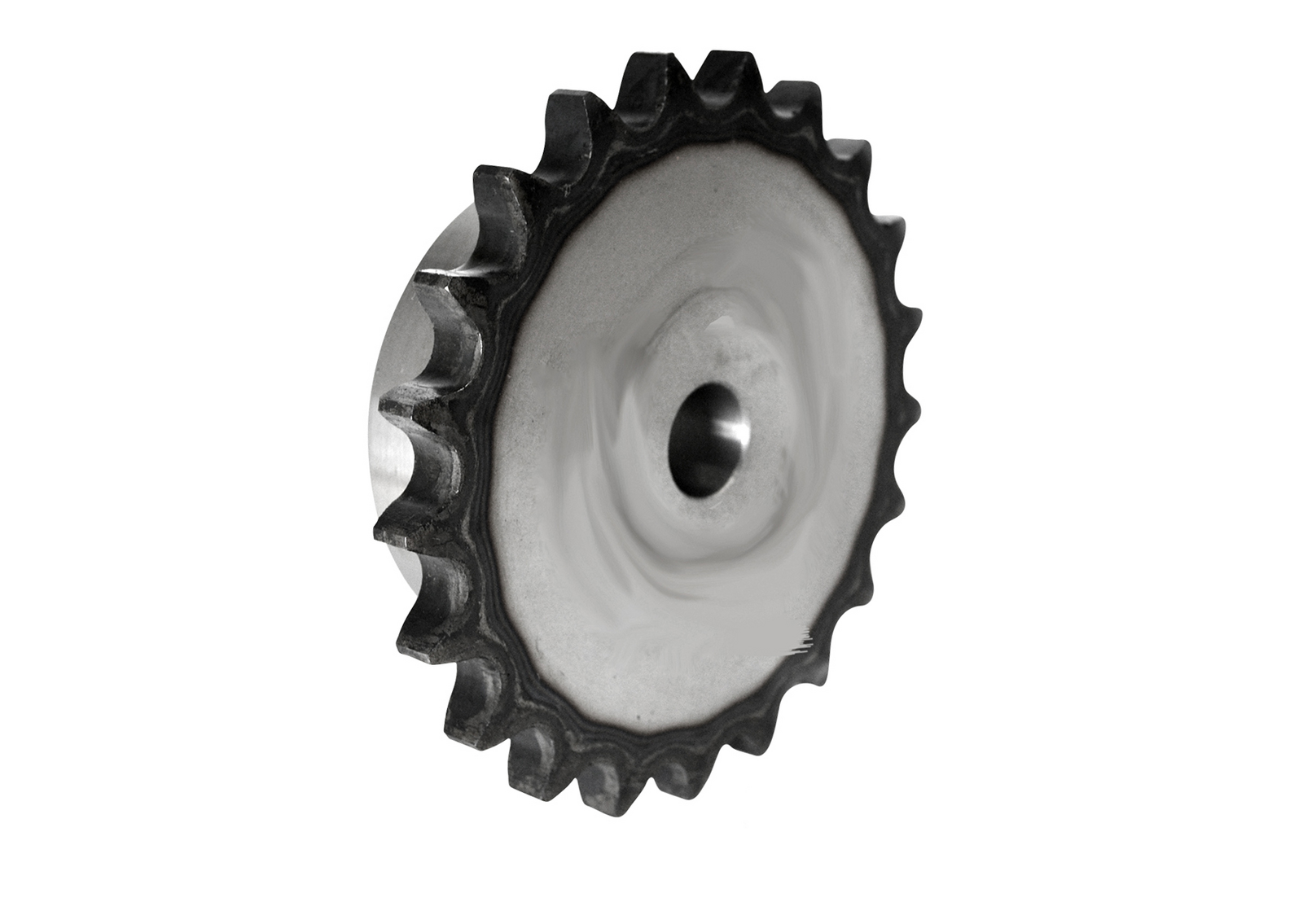

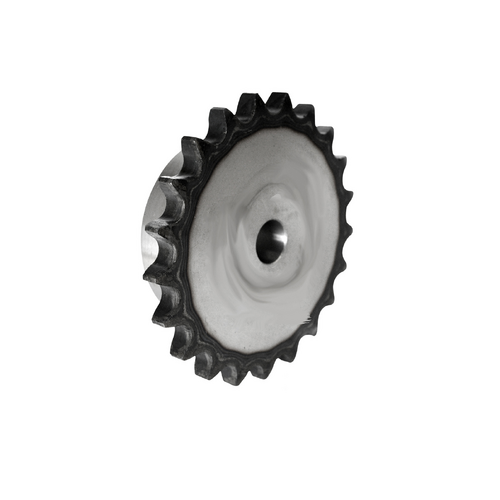

24 Tooth BS Sprocket 24B 1-1/2 Inch Pitch Simplex Pilot Bore Centre

$363.14



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 24B-1-24PB
Bore PILOT BORE
(P) Pitch (mm) 38.1 (1-1/2")
Sprocket Material Steel
No. Of Teeth 24
No. Of Rows 1
(B¹) Tooth Width (mm) 23.6
(de) Outside Ø (mm) 307
(dp) Pitch Ø (mm) 292
(dm) Hub Ø (mm) 160
(A) Sprocket Width (mm) 100
(D¹) Bore Size (mm) 30
