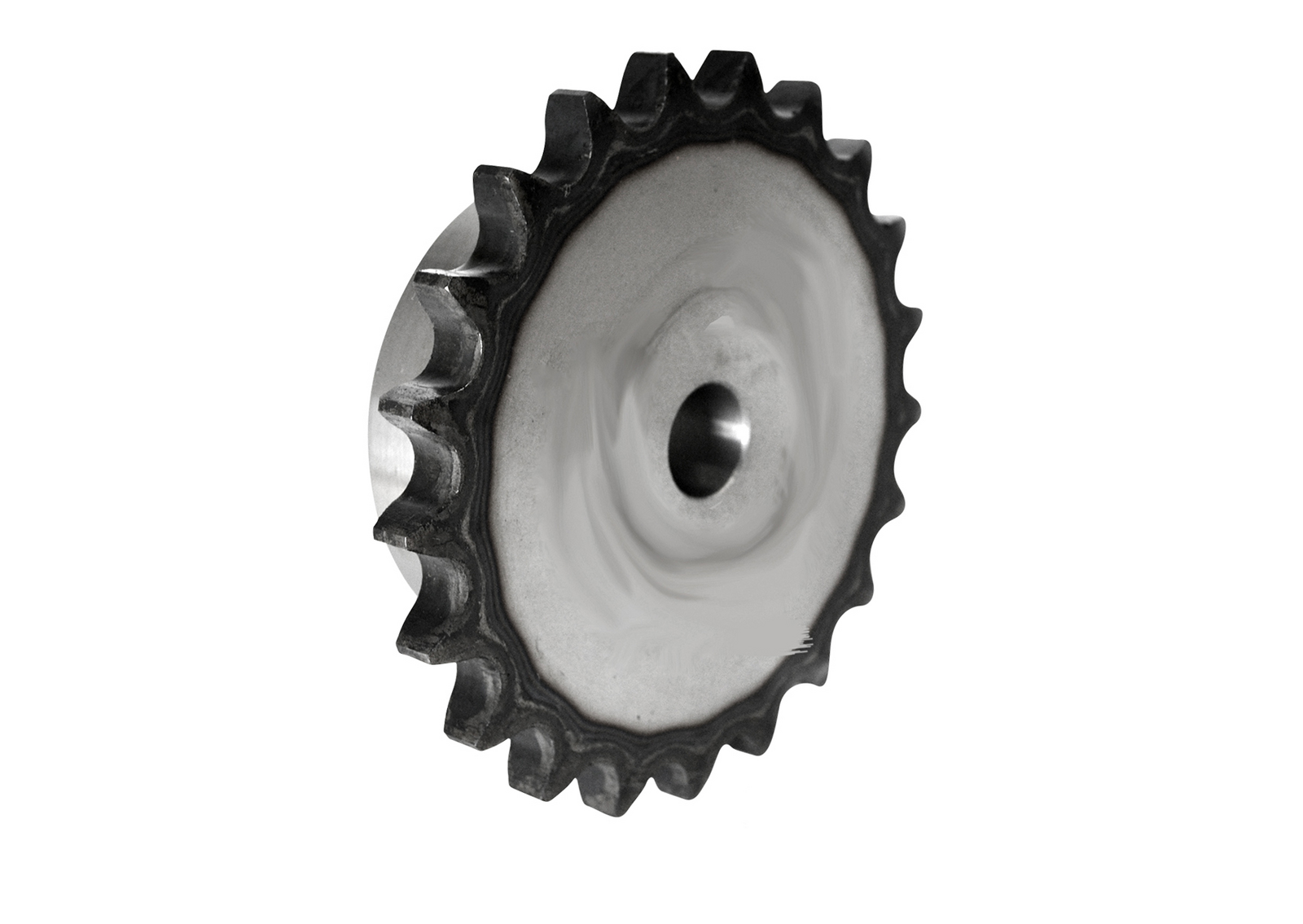

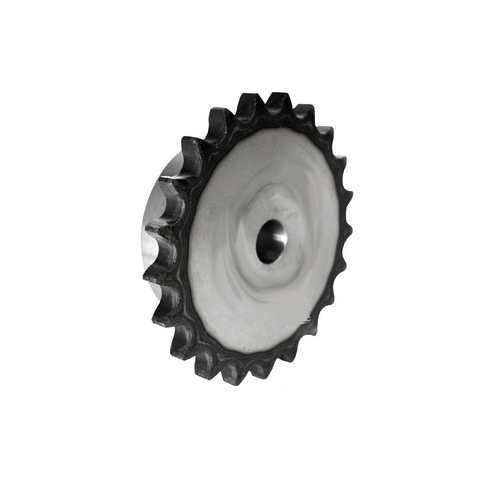

23 Tooth BS Sprocket 16B 1 Inch Pitch Simplex Pilot Bore Centre

$102.41



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 16B-1-23PB
Shipping Weight 5.0800kg
Bore PILOT BORE
(P) Pitch (mm) 25.4 (1")
Sprocket Material Steel
No. Of Teeth 23
No. Of Rows 1
(B¹) Tooth Width (mm) 16.2
(de) Outside Ø (mm) 198.1
(dp) Pitch Ø (mm) 186.5
(dm) Hub Ø (mm) 110
(A) Sprocket Width (mm) 50
(D¹) Bore Size (mm) 20
