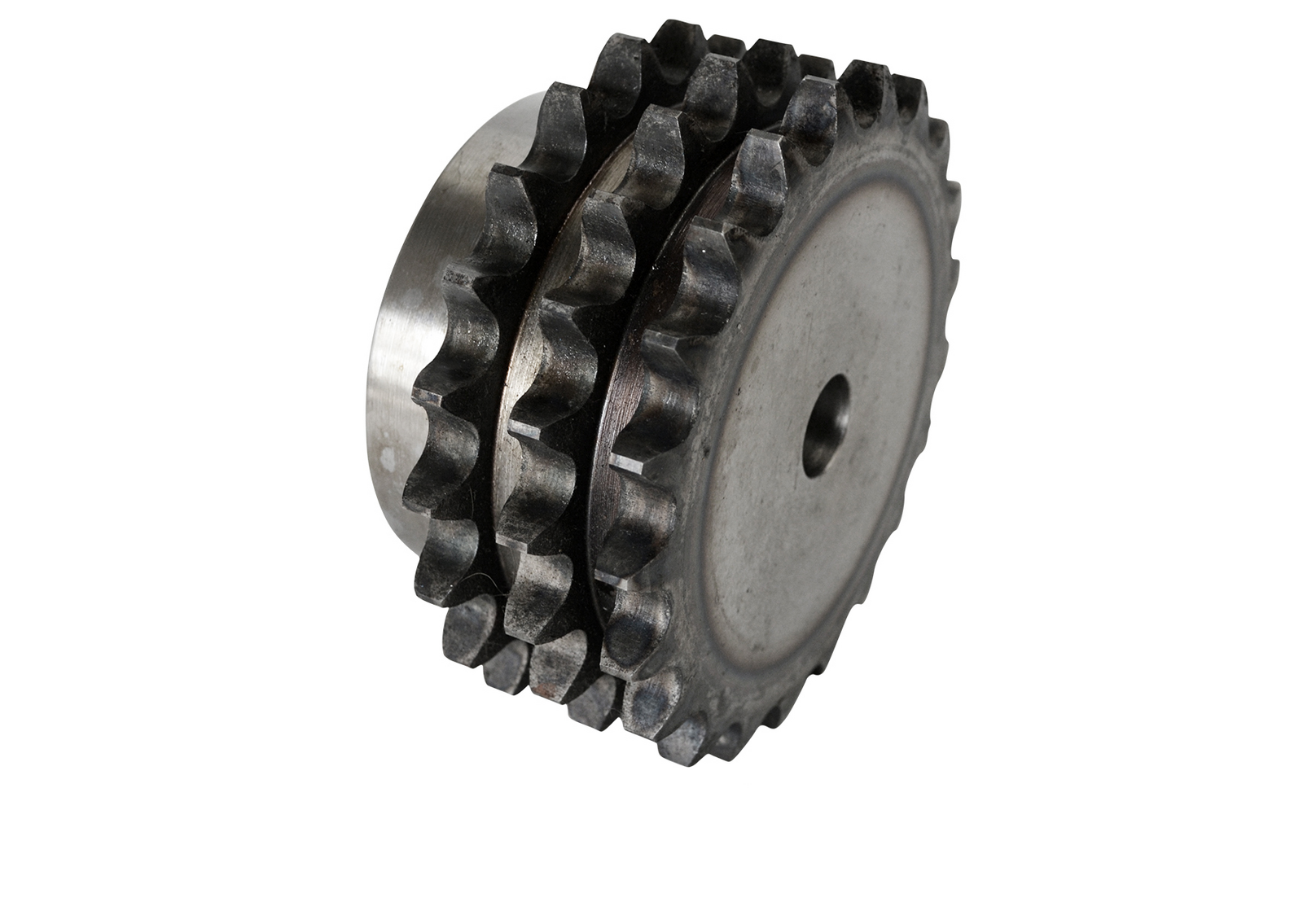

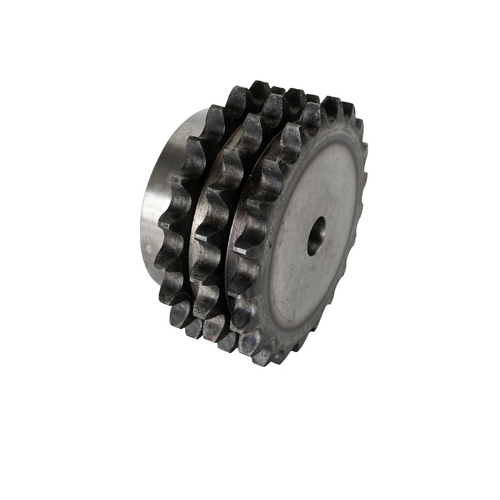

21 Tooth BS Sprocket 10B 5/8 Inch Pitch Triplex Pilot Bore Centre

$83.58



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 10B-3-21PB
Bore PILOT BORE
(P) Pitch (mm) 15.875 (5/8")
Sprocket Material Steel
No. Of Teeth 21
No. Of Rows 3
(B¹) Tooth Width (mm) 9.1
(de) Outside Ø (mm) 113.4
(dp) Pitch Ø (mm) 106.5
(dm) Hub Ø (mm) 85
(A) Sprocket Width (mm) 60
(D¹) Bore Size (mm) 20
(B³) Tooth Width (mm) 42.1
