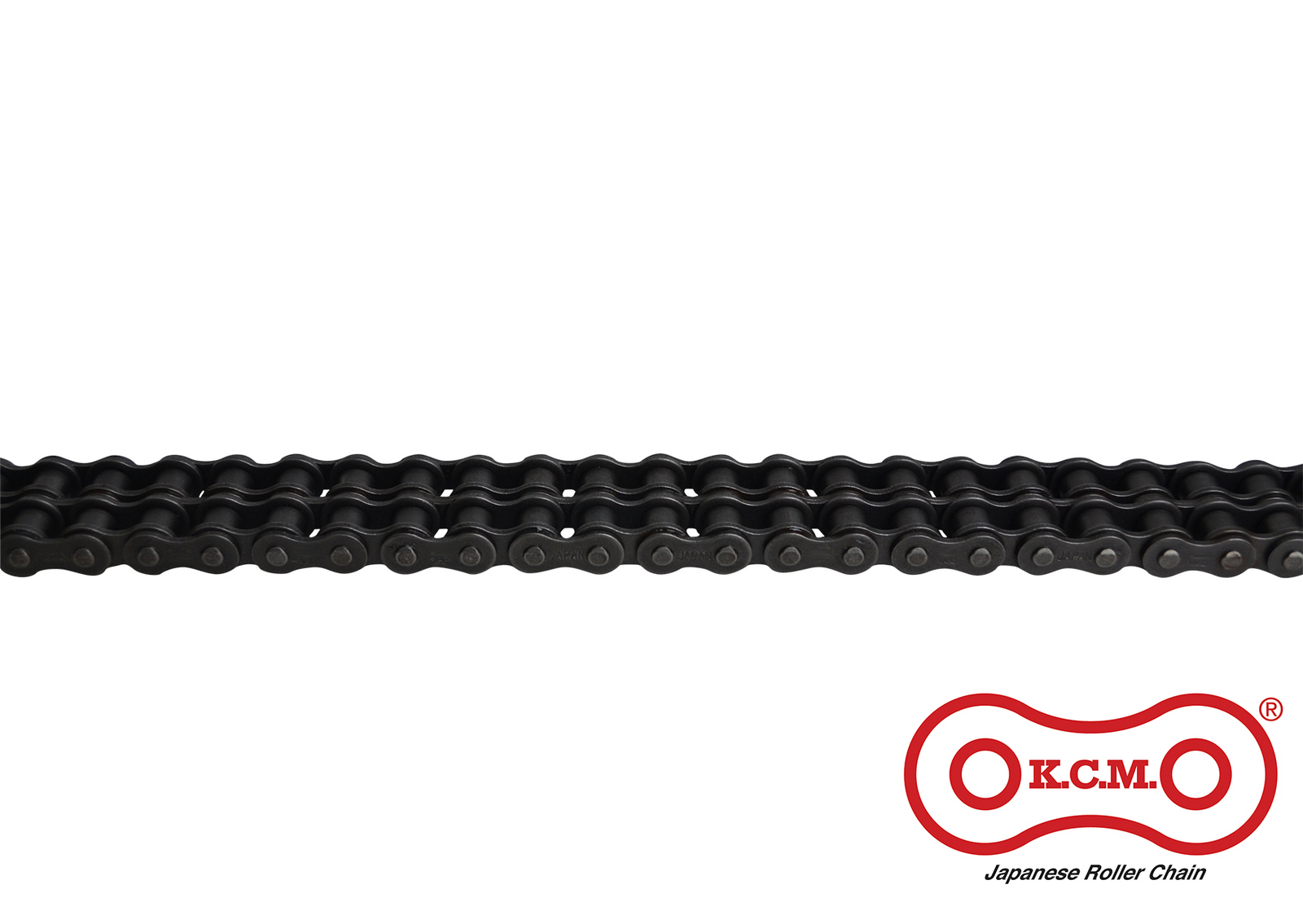

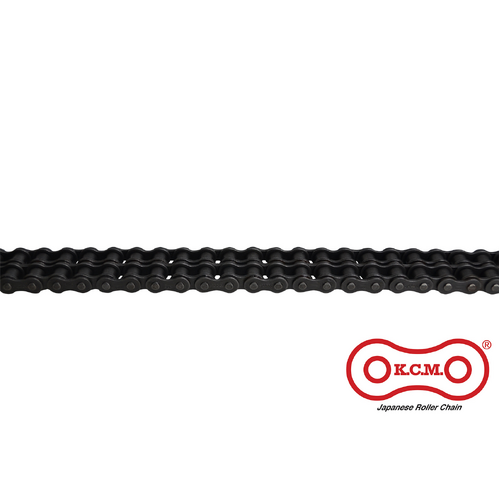

20B-2 KCM Premium Roller Chain 1-1/4 Inch Pitch BS Duplex - Price per 10' Roll

$1,143.34Pack Size: 10



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 20B-2-KCM
Brand KCM
Shipping Weight 2.2788kg
Grade Premium
Norm. ISO-B, ISO 606-B
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 19.56
(D) Roller Diameter (mm) 19.05
(d) Pin Diameter (mm) 10.19
(L) Offset (mm) 83.7
(T) Link Plate Thickness (mm) 3.5
(H) Link Plate Height (mm) 26
(L²) Pin (mm) 80.4
